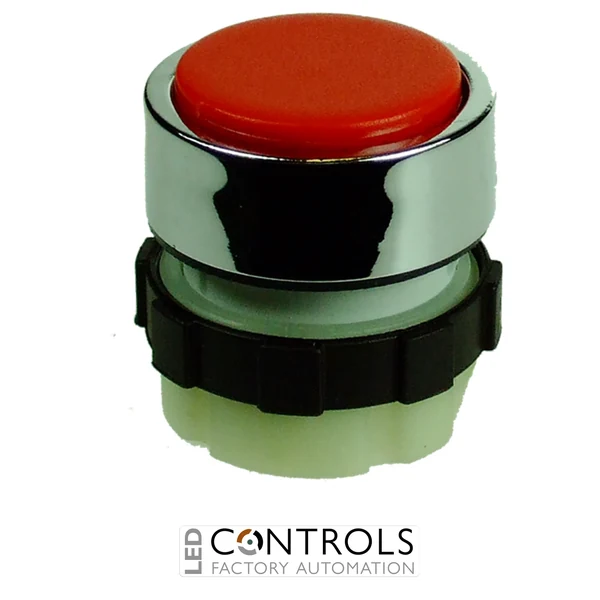

IMO BC3DRED is an IP67 red non-illuminated momentary push-button actuator with spring-return operation, a chrome-finish bezel and a 22.5 mm panel mounting aperture.
£4.23
The IMO BC3DRED is a durable and dependable momentary push-button actuator designed for industrial control panels, machinery interfaces and operator stations. As part of the established IMO B3 22 mm control-device range, it provides clear manual operation of compatible electrical contact blocks.
This non-illuminated actuator features a red flush button, a chrome-finish bezel and spring-return operation. Pressing the button operates the connected contact mechanism, while releasing it automatically returns the actuator to its normal position, making it suitable for stop, reset, cancel and alarm-acknowledgement commands.
Designed for installation through a 22.5 mm panel aperture, the BC3DRED provides IP67 front protection for demanding industrial environments. Its modular construction allows compatible IMO connectors and normally open or normally closed contact blocks to be selected separately for the required control circuit.
Momentary push buttons provide a control command only while the operator presses the actuator. The IMO BC3DRED transfers this movement to a compatible contact block, allowing equipment functions such as stopping, resetting, cancelling or acknowledging an alarm to be controlled from an operator panel.
When pressure is removed, the internal spring returns the button to its normal position and the connected contacts return to their normal electrical state. The modular B3 design enables panel builders to combine the actuator with the normally open or normally closed contacts required by the application.
| HS Code | 8536508000 |
|---|---|
| Country of Manufacture | Austria |
| Manufacturer | IMO Precision Controls |
| Series | B3 |
| Model | BC3DRED |
| Manufacturer reference | BC3D RT |
| Product type | Momentary push-button actuator |
| Operating action | Spring return |
| Button style | Flush head |
| Button colour | Red |
| Bezel finish | Chrome |
| Illumination | Non-illuminated |
| Mounting-hole diameter | 22.5 mm |
| Permitted panel thickness | 1–6 mm |
| Front protection rating | IP67 |
| Mounting type | Panel mounting |
| Weight | 0.014 kg |
| Contact blocks | Ordered separately |
The BC3DRED provides momentary manual control for machinery and automation functions such as stopping, resetting, cancelling or acknowledging an alarm.
The actuator has spring-return operation, so it automatically returns to its normal position when released.
The actuator is designed for installation in a 22.5 mm mounting hole.
The front of the installed actuator has an IP67 protection rating, providing protection against dust and temporary water immersion.
The BC3DRED is a modular actuator; compatible IMO connector and contact-block components are selected separately to create the required electrical circuit.
IMO push-button and selector components are used by panel builders, automation engineers and machinery manufacturers to create clear, durable and dependable operator interfaces for industrial equipment.
