Why Choose the Pizzato E21PDBL9AAAC Double Pushbutton?
The Pizzato E21PDBL9AAAC is a robust double projecting pushbutton actuator designed for machine control panels, operator stations and industrial automation systems. As part of the Pizzato Elettrica EROUND E2 PD series, it combines two momentary control buttons with a central illuminable cap in one compact panel-mounted device.

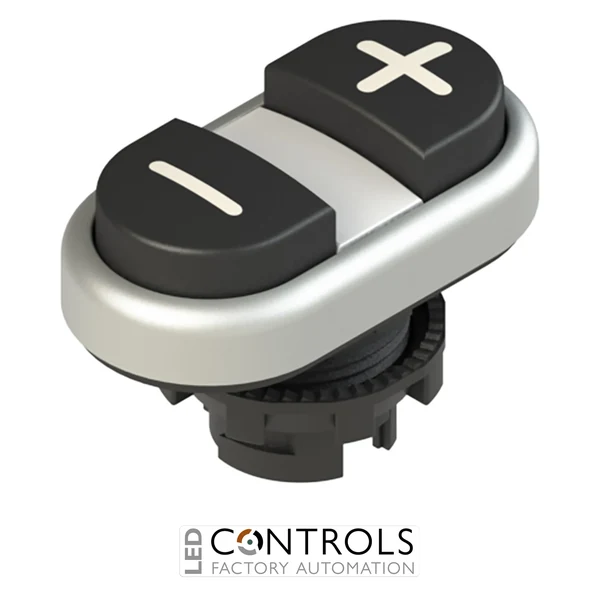

This actuator features black upper and lower projecting buttons with plus and minus markings, making it ideal for increasing or decreasing speed, pressure, temperature, position and other adjustable machine parameters. The white central cap can be illuminated when the actuator is combined with a compatible Pizzato LED unit, while its satin-chrome bezel provides a durable, professional finish.
With IP67 and IP69K protection, the E21PDBL9AAAC is designed for demanding industrial environments, including equipment exposed to dust, water immersion and high-pressure hot-water cleaning. Its modular construction accepts compatible EROUND mounting adapters, contact blocks and LED units, allowing the required electrical configuration to be assembled for each application.
Key Advantages
- Two projecting momentary buttons housed in one compact actuator.
- Clear plus and minus markings support intuitive parameter adjustment.
- White central cap supports backlighting with a compatible Pizzato LED unit.
- IP67 and IP69K protection for harsh and washdown environments.
- High mechanical endurance for frequent industrial operation.
- Modular EROUND design supports flexible contact and illumination configurations.
Key Features
- Pizzato EROUND E2 PD series double pushbutton actuator.
- Upper and lower projecting black buttons.
- Upper button marked with a plus symbol.
- Lower button marked with a minus symbol.
- Flush white central cap designed for illumination.
- Satin-chrome bezel.
- Spring-return momentary actuation.
- Compatible with modular Pizzato EROUND contact blocks and LED units.
Reliable Parameter Control for Industrial Machinery
Double pushbuttons combine two related operator commands within a single panel position. The plus and minus markings on the Pizzato E21PDBL9AAAC provide a clear interface for raising or lowering machine settings while reducing the panel space required compared with two separate actuators.
The actuator is supplied as part of a modular control system and can be paired with suitable Pizzato mounting hardware, contact blocks and an LED unit. This enables designers to choose the required normally open or normally closed contact arrangement and add central-cap illumination for status indication.
Typical Applications
- Increasing and decreasing motor speed or process settings.
- Temperature, pressure and flow adjustment controls.
- Machine-tool feed and positioning controls.
- Conveyor speed and material-handling adjustments.
- Production-line and packaging-machine operator panels.
- Washdown equipment and demanding industrial environments.
