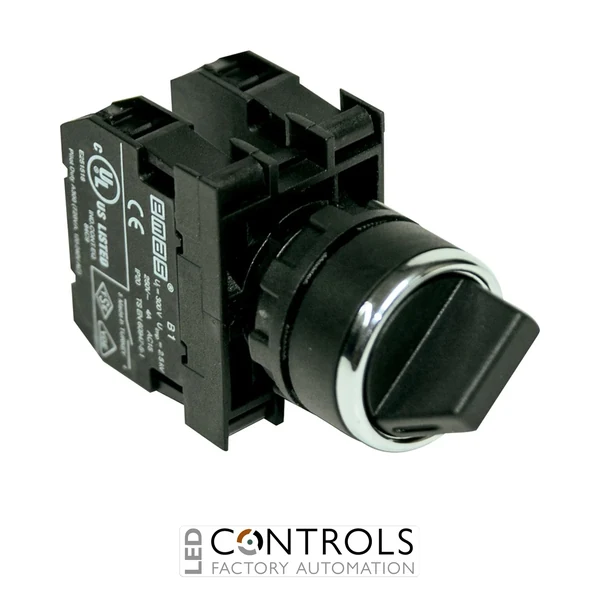

EMAS B101T20 Selector Switch 2NO (0-I) 90° Stay Put 22mm
The EMAS B101T20 is a durable industrial selector switch designed for control panels, automation systems, and electrical switching applications. Featuring a 2NO contact configuration, a maintained stay put selector mechanism, and a 22mm mounting diameter, this EMAS B Series control unit provides reliable and stable operator control for industrial environments.
Designed with a 0-I 90° selector position, the B101T20 allows operators to manually select and maintain the required switching position without automatic return. Its compact design and robust construction make it suitable for machinery control panels, industrial equipment, and automation applications.
Why Choose the EMAS B101T20 Selector Switch?
- Reliable industrial operation: Designed for professional control panel and automation applications.
- Maintained selector action: Stay put mechanism keeps the selected position until manually changed.
- 2NO contact configuration: Suitable for a variety of industrial switching circuits.
- 22mm mounting diameter: Fits standard control panel mounting openings.
- High durability: Rated for minimum 500,000 mechanical operations and 100,000 electrical operations.
Key Features of EMAS B101T20
- Manufacturer: EMAS
- Product Series: B Series Plastic
- Product Code: B101T20
- Product Type: Selector Switch
- Selector Operation: Stay Put
- Selector Position: 0-I (90°)
- Contact Configuration: 2NO
- Mounting Diameter: 22mm
- Rated Current (Ie): 4A at 250V AC
- Usage Category: AC-15
- Mechanical Life: Minimum 500,000 operations
- Electrical Life: Minimum 100,000 operations
- Protection Rating: IP50
- Operating Temperature: -15°C to +80°C
- Contact Material: AgNi
- Standards: IEC 60947-5-1, TS EN 60947-5-1, UL 508, VDE 0660
Applications
The EMAS B101T20 selector switch is commonly used in:
- Industrial automation systems
- Machine control panels
- Motor control applications
- Electrical control cabinets
- Production machinery
- Operator interface stations
