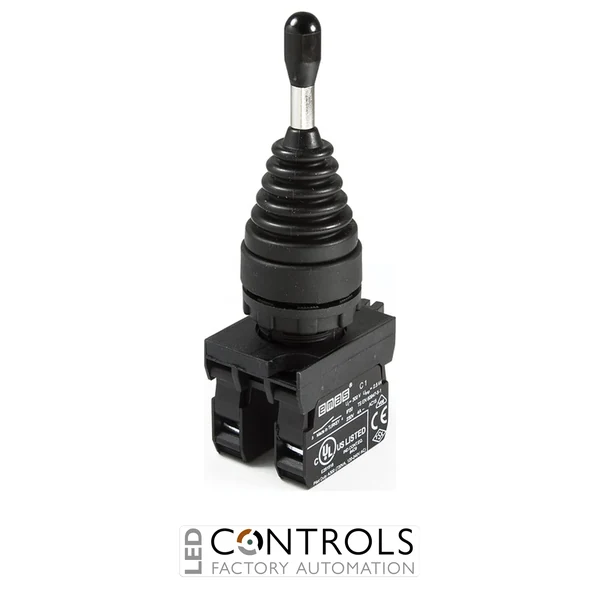

EMAS CP101DJ20 is a maintained two-position 22 mm industrial joystick control switch with separate 1NO+1NO contacts, a 4 A AC-15 rating at 230 V AC and IP65 front protection.
£19.32
The EMAS CP101DJ20 is a robust 22 mm industrial joystick control switch designed for directional operation of machinery, material handling equipment and automation systems. Part of the EMAS CP Series, it combines two maintained operating positions with two normally open control contacts.
This joystick uses a stay-put mechanism, allowing the selected position to remain engaged after the operator releases the handle. Its two-position configuration provides intuitive control of two opposing machine functions from a single compact panel-mounted device.
With an AC-15 operational current rating of 4 A at 230 V AC, IP65 front protection and a standard 22 mm mounting diameter, the CP101DJ20 is suitable for industrial control panels, operator stations and machinery exposed to demanding working environments.
Industrial joystick switches provide a clear and intuitive way to operate opposing equipment functions from a single control point. Moving the handle into either position operates the corresponding normally open contact, allowing the joystick to control functions such as forward and reverse, raise and lower or left and right movement.
The EMAS CP101DJ20 uses a maintained mechanism, so the selected command remains active until the joystick is moved to the alternative position. Its compact 22 mm format allows installation alongside standard push buttons, selector switches and pilot lights in compatible industrial panels.
| Manufacturer | EMAS |
|---|---|
| Series | CP Series Plastic |
| Model | CP101DJ20 |
| Product type | Joystick control switch |
| Number of positions | 2 |
| Operating mechanism | Stay put |
| Contact configuration | 1NO+1NO |
| Operational current | 4 A at 230 V AC |
| Utilisation category | AC-15 |
| Rated insulation voltage (Ui) | 300 V |
| Rated impulse withstand voltage (Uimp) | 2.5 kV |
| Dielectric strength, body to contact | 2,500 V AC |
| Dielectric strength, contact to contact | 1,500 V AC |
| Insulation resistance | Minimum 10 MΩ at 500 V DC |
| Mechanical life | Minimum 500,000 operations |
| Electrical life | Minimum 100,000 operations |
| Maximum operating frequency | 3,000 mechanical operations per hour / 1,200 electrical operations per hour |
| Operating temperature | −15 to +65 °C |
| Pollution degree | 3 |
| Protection rating | IP65 |
| Contact material | AgNi |
| Cable connection capacity | 1.5–2.5 mm² |
| Terminal tightening torque | 1.5 Nm |
| Conditional short-circuit current | 1 kA |
| Mounting diameter | 22 mm |
| Standards | IEC 60947-5-1, TS EN 60947-5-1, UL 508 and VDE 0660 |
The CP101DJ20 provides two-position joystick control for opposing machinery functions such as forward and reverse, raise and lower or left and right movement.
No. The CP101DJ20 has a stay-put mechanism, so the joystick remains in its selected position after the handle is released.
The joystick is fitted with two separate normally open contacts, identified as a 1NO+1NO contact configuration.
The CP101DJ20 has an AC-15 operational current rating of 4 A at 230 V AC.
The joystick is designed for installation in a standard 22 mm panel mounting hole.
EMAS CP Series control units provide dependable switching, standardised panel mounting and robust protection for industrial machinery, automation equipment and electrical control applications.
