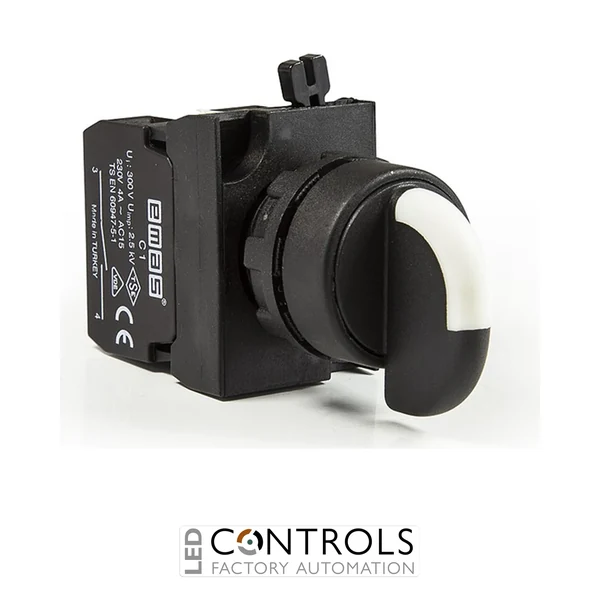

EMAS CP101S30 Selector Switch - CP Series Plastic 2NO (II-0-I) 60° Stay Put 22mm Control Unit
The EMAS CP101S30 is a durable industrial selector switch from the CP Series Plastic range,
designed for reliable manual control in automation systems, electrical panels, and industrial machinery.
Featuring a 22mm mounting diameter, 2NO contact configuration, and
(II-0-I) three-position 60° selector operation, this stay put control unit provides secure
position selection for professional control applications.
With a maintained stay put mechanism, the EMAS CP101S30 keeps the selected position until manually changed.
It offers IP65 front protection, AgNi contact material, long mechanical life, and compliance with recognised
industrial standards including IEC 60947-5-1 and UL 508.
EMAS CP101S30 Features
- Manufacturer: EMAS
- Product Series: CP Series Plastic
- Product Type: Selector Control Unit
- Mounting Diameter: 22mm
- Selector Position: (II-0-I), 60°
- Operation Type: Stay Put
- Contact Configuration: 2NO (Two Normally Open Contacts)
- Rated Current: 4A at 230V AC
- Utilization Category: AC-15
- Protection Degree: IP65 (Front Side)
- Contact Material: AgNi
- Mechanical Life: Minimum 500,000 operations
- Electrical Life: Minimum 100,000 operations
- Operating Temperature: -15°C to +80°C
Applications
The EMAS CP101S30 selector switch is suitable for industrial automation panels, machinery control stations,
pump and motor control systems, OEM equipment, and electrical cabinets requiring maintained Manual-Off-Manual
or multi-position selection control.
Why Choose EMAS CP101S30?
- Reliable three-position selector switching
- Compact 22mm panel mounting format
- Maintained stay put operation
- High mechanical and electrical endurance
- IP65 protection for industrial environments
- Suitable for professional automation applications
