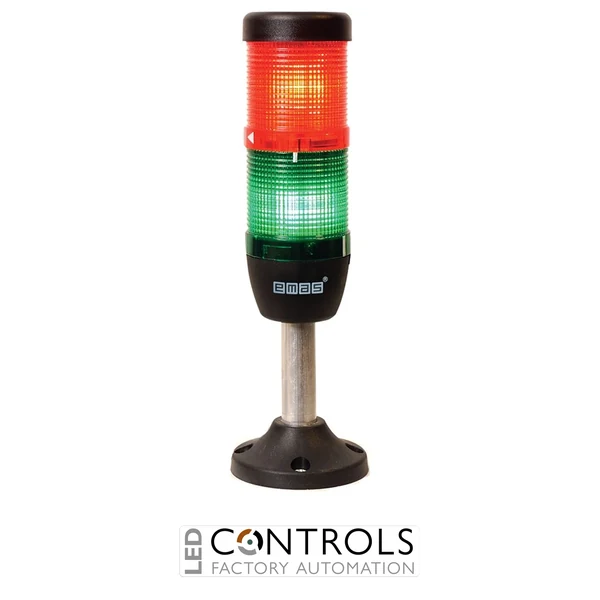

EMAS IK52L024XM03E 50mm 24V AC/DC LED Signal Tower with 110mm Aluminium Base - 2 Module IP65
Product Overview
The EMAS IK52L024XM03E is a compact two-level 50mm LED signal tower designed for industrial automation, machine status indication, and control panel applications. Featuring 24V AC/DC operation, red and green LED indication, a 110mm aluminium base, and IP65 protection, this signal tower provides reliable visual status indication in demanding industrial environments.
Part of the EMAS IK Series, the IK52L024XM03E combines modular construction, durable materials, and energy-efficient LED technology. The sealed IP65 design makes it suitable for applications where additional protection against dust and water ingress is required, including industrial machinery, automation systems, and production equipment.
Key Features
Manufacturer: EMAS
Model: IK52L024XM03E
50mm LED signal tower
24V AC/DC operating voltage
Two-level LED indication
Red and green LED modules
110mm aluminium base mounting
IP65 protection rating
Low power LED technology
Suitable for industrial automation and machine status signalling
Applications
Industrial automation equipment
Machine operating status indication
Factory production lines
Control cabinets
Safety and warning systems
Equipment monitoring applications
Why Choose the EMAS IK52L024XM03E?
The EMAS IK52L024XM03E provides a dependable visual signalling solution for industrial environments requiring durability and clear status indication. Its 24V AC/DC supply, dual LED modules, aluminium base, and IP65 protection rating make it suitable for a wide range of automation and machine monitoring applications.
Technical Specifications
Tick the specs you need, then view products that match.
Diameter
50 mm
Coil / Supply Voltage
24 V AC/DC
Light Function
Steady
Mounting Type
Wall / surface
Illumination
Illuminated
Device Type
LED / Lamp Block
Product Series
Emas IK Series
Colour
Red
Voltage
24 V
IP Rating
IP65
Brand
EMAS
Part Number
IK52L024XM03E
Series
IK Series
Product Type
LED Signal Tower
Light Source
LED
Operating Voltage
24V AC/DC
Diameter
50mm
Levels
Two Level
Light Colours
Red / Green
Function
Steady LED Indication
Mounting
110mm Aluminium Base
Protection Rating
IP65
Power Consumption
2W
Operating Temperature
-25°C to +70°C
Buzzer
Not Included
Electrical Life
Minimum 10,000 hours
Frequently Asked Questions
What voltage does the EMAS IK52L024XM03E operate at?
The EMAS IK52L024XM03E operates on a 24V AC/DC power supply.
What colours are available on this signal tower?
This model uses red and green LED indication modules.
Does the IK52L024XM03E include a buzzer?
No. This model provides visual LED indication without an integrated buzzer.
What protection rating does this signal tower have?
The EMAS IK52L024XM03E has an IP65 protection rating, providing resistance against dust and water ingress.
Product Data
Diameter
50 mm
Coil / Supply Voltage
24 V AC/DC
Light Function
Steady
Mounting Type
Wall / surface
Illumination
Illuminated
Device Type
LED / Lamp Block
Product Series
Emas IK Series
Colour
Red
Voltage
24 V
IP Rating
IP65
Brand
EMAS
Part Number
IK52L024XM03E
Series
IK Series
Product Type
LED Signal Tower
Light Source
LED
Operating Voltage
24V AC/DC
Diameter
50mm
Levels
Two Level
Light Colours
Red / Green
Function
Steady LED Indication
Mounting
110mm Aluminium Base
Protection Rating
IP65
Power Consumption
2W
Operating Temperature
-25°C to +70°C
Buzzer
Not Included
Electrical Life
Minimum 10,000 hours
