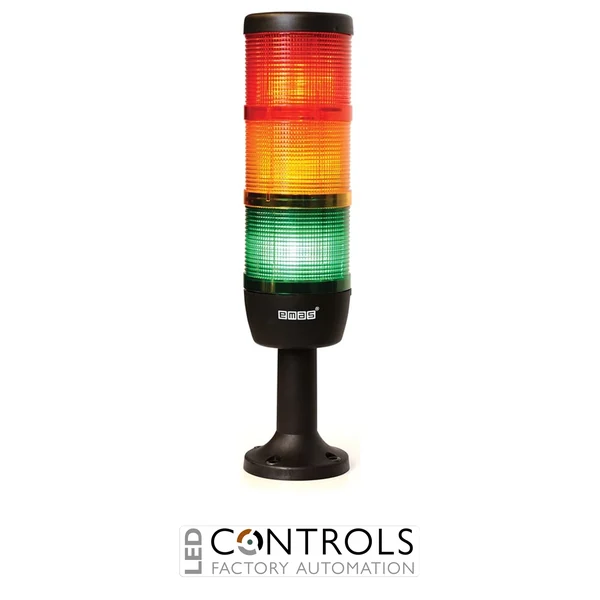

EMAS IK73L024XM01 LED Tower Light - IK Series Three Level 24V AC/DC 70mm
The EMAS IK73L024XM01 is a three-level LED signal tower light from the IK Series,
designed for industrial automation, machine status indication, and control panel applications.
Featuring a 70mm LED tower design, 24V AC/DC operation, and a 110mm plastic tube and base mounting
configuration, this signal tower provides clear and dependable visual indication for industrial
environments.
Product Overview
The EMAS IK73L024XM01 combines modular construction, heat-resistant clear vision polycarbonate
signal modules, and easy wiring for efficient installation. The three-level LED tower provides
reliable machine status indication using red, amber, and green signal colours, making it suitable
for automation systems, production equipment, and industrial control applications.
Key Features
Manufacturer: EMAS
Product Series: IK Series
Model: IK73L024XM01
Three-level LED signal tower
70mm diameter LED tower design
24V AC/DC operating voltage
110mm plastic tube and base mounting
LED illumination technology
Red, amber, and green signal indication
Modular construction for flexible installation
Heat-resistant clear vision polycarbonate modules
Without integrated buzzer
Applications
Industrial automation systems
Machine operating status indication
Production lines
Control cabinets
Factory signalling systems
Industrial equipment monitoring
Why Choose EMAS IK73L024XM01?
The EMAS IK73L024XM01 delivers reliable visual machine signalling with efficient LED technology,
flexible 24V AC/DC operation, and a durable modular design. Its compact 70mm tower format makes it
suitable for a wide range of industrial automation and control applications.
Technical Specifications
Tick the specs you need, then view products that match.
Mounting Type
Tube / pole
Light Function
Steady
Coil / Supply Voltage
24 V AC/DC
Illumination
Illuminated
Product Series
Emas IK Series
Voltage
24 V
Device Type
LED / Lamp Block
Specification Value Brand
EMAS
Part Number
IK73L024XM01
Series
IK Series
Light Source
LED
Operating Voltage
24V AC/DC
Operating Frequency
50 Hz
Product Type
LED Tower 70mm
Number of Levels
Three Level
Mounting
110mm Plastic Tube and Base
Power Consumption
3W
Insulation Voltage
Ui 300V
Protection Degree
IP40
Operating Temperature
-25°C to +70°C
Cable Section
0.75-1.5 mm²
Screw Torque
1.8 Nm
Lampholder Type
BA15S
Electrical Life
Minimum 10,000 hours
Gross Weight
342 g
IP Rating
IP40
Frequently Asked Questions
What voltage does the EMAS IK73L024XM01 operate on?
The EMAS IK73L024XM01 operates on a 24V AC/DC power supply.
How many signal levels does the IK73L024XM01 have?
The IK73L024XM01 features three LED signal levels.
Does the EMAS IK73L024XM01 include a buzzer?
No, the IK73L024XM01 is a visual LED tower light without an integrated buzzer.
