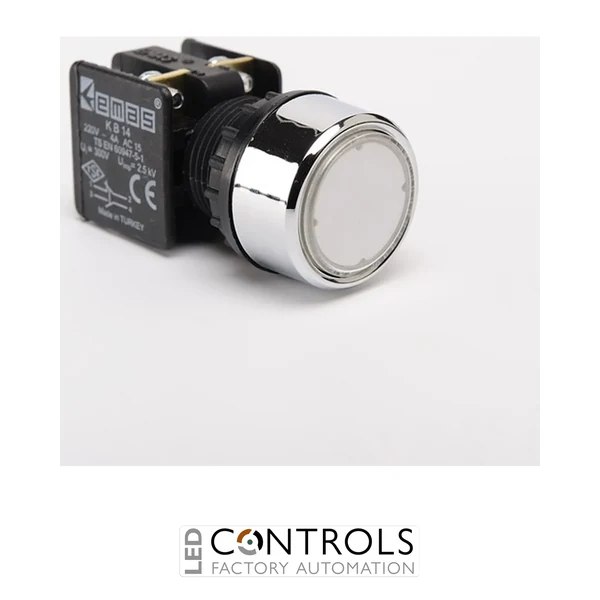

Why Choose the EMAS KB14DB EMAS KB FLUSH PUSH BUTTON DOUBLE CIRCUIT WHITE 22MM IP40?
£9.62
The EMAS KB14DB is a durable industrial push button control unit designed for automation systems, machinery controls, and electrical control panels. Featuring a 1NO+1NC contact configuration, spring return flush actuator, white button design, and standard 22mm mounting diameter, the KB14DB provides reliable manual switching performance for industrial applications.
Part of the EMAS KB Series Plastic range, the KB14DB is manufactured with a durable polycarbonate button lens and non-flammable V0 PA6.6 contact blocks. It provides long service life, reliable switching, and compliance with IEC 60947-5-1 and TS EN 60947-5-1 standards.
The EMAS KB14DB white flush push button is suitable for industrial automation panels, machinery control stations, electrical cabinets, production equipment, and operator interfaces requiring a reliable double-circuit manual control device.
| IP Rating | IP40 |
|---|---|
| Specification Value Contact Configuration | 1NO + 1NC |
| Actuator Type | Spring Flush |
| Colour | White |
| Mounting Diameter | 22mm |
| Rated Current | 4A at 220V AC |
| Usage Category | AC-15 |
| Mechanical Life | 500,000 operations minimum |
| Electrical Life | 100,000 operations minimum |
| Operating Frequency | Mechanical 3000 / Electrical 1200 operations per hour |
| Insulation Voltage | 300V |
| Impulse Withstand Voltage | 2.5kV |
| Dielectric Strength | 2500V AC (Body-Contact) |
| Dielectric Strength (Contact-Contact) | 1500V AC |
| Operating Temperature | -15°C to +80°C |
| Pollution Degree | 3 |
| Cable Section | 1.5-2.5mm² |
| Short Circuit Breaking Capacity | 1kA |
| Protection Degree | IP50 |
The EMAS KB14DB features one normally open (NO) and one normally closed (NC) contact configuration.
The KB14DB is designed for standard 22mm panel mounting applications.
The EMAS KB14DB features a white flush spring return actuator.
The KB14DB complies with IEC 60947-5-1 and TS EN 60947-5-1 industrial control device standards.
