Why Choose the Lovato GX3292U25 Rotary Cam Switch?
The Lovato GX3292U25 is a robust four-pole ON/OFF rotary cam switch designed for reliable manual switching and isolation in industrial electrical systems. Part of the Lovato GX rotary cam switch series, it uses switching diagram 92 and has an IEC/EN conventional free air thermal current rating of 32 A.

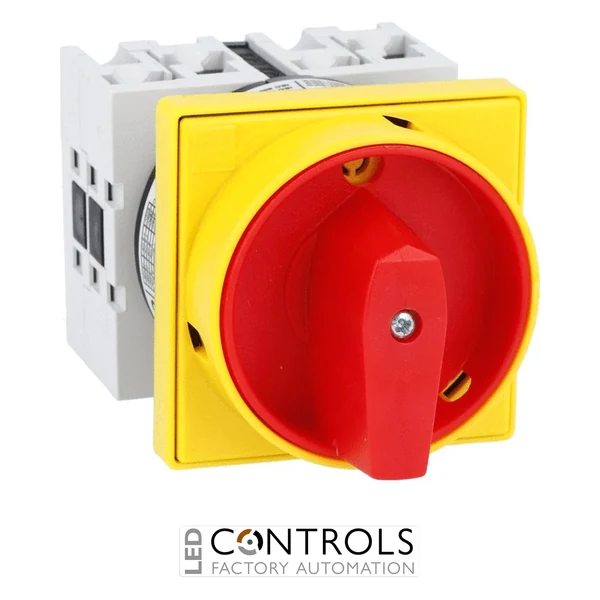

Designed for front mounting, the GX3292U25 uses Lovato's U25 mounting form, incorporating a red/yellow operating handle that can be padlocked in the 0 position together with protection covers. This provides a clearly identifiable and lockable switching point for industrial machinery, control panels and electrical distribution equipment.
The switch features a 65 × 65 mm front plate and provides IP65 frontal protection. Its electrical characteristics include an IEC/EN rated insulation voltage of 690 V, a rated impulse withstand voltage of 6 kV and an AC-1/AC-21A operational current rating of 32 A.
Key Advantages
- Reliable four-pole ON/OFF rotary cam switching for industrial applications.
- 32 A IEC/EN conventional free air thermal current rating.
- Red/yellow handle padlockable in the 0 position for controlled isolation.
- Front-mounted U25 configuration supplied with protection covers.
- IP65 frontal protection for demanding panel environments.
- 65 × 65 mm front plate provides a practical operator interface.
Key Features
- Lovato GX32 rotary cam switch.
- Four-pole ON/OFF switching with switching diagram 92.
- 32 A IEC/EN conventional free air thermal current.
- 690 V IEC/EN rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- 440 V rated operational voltage.
- U25 front mounting with red/yellow padlockable handle and protection covers.
- 65 × 65 mm front plate.
Reliable Four-Pole Industrial Switching
Rotary cam switches provide positive mechanical switching between defined operating positions, making them suitable for machinery, electrical distribution equipment and industrial control panels. A four-pole configuration allows four conductors to be switched together through a single manual operating mechanism.
The Lovato GX3292U25 combines four-pole ON/OFF switching with a highly visible red/yellow handle that can be padlocked in the 0 position. Its IP65 frontal protection, front-mounted configuration and protection covers make it a practical solution for applications requiring dependable manual switching and a lockable OFF position.
Typical Applications
- Industrial electrical control panels.
- Machine switching and isolation systems.
- Four-pole electrical circuit switching.
- Industrial machinery and production equipment.
- Electrical distribution equipment.
- OEM machinery requiring a padlockable OFF position.
