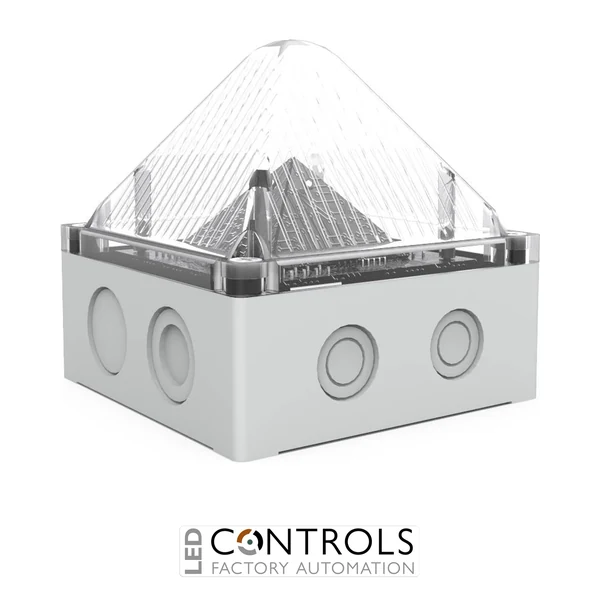

Pfannenberg 21108631000 QUADRO LED-HI DC CL high-intensity LED multifunction signalling light with selectable operating modes for industrial applications.
£440.99
The Pfannenberg QUADRO LED-HI DC CL is a powerful and versatile LED multifunction signalling light designed for reliable visual indication in industrial automation, machinery and safety applications. As part of the Pfannenberg QUADRO LED-HI range, it combines high-intensity LED technology with a rugged industrial housing for dependable operation in demanding environments.
This QUADRO LED-HI DC CL continuous light operates from a 12–48 V DC supply and provides selectable signalling modes including continuous light, blinking light and flashing light. The adjustable brightness and high optical output make it suitable for applications requiring clear visual status indication over long distances.
With a compact housing measuring 130 mm height, 130 mm width and 130 mm depth, the Pfannenberg 21108631000 provides a durable signalling solution with IP66/IP67 protection, IK08 impact resistance and a long LED service life.
LED multifunction lights provide operators with immediate visual feedback of machine conditions, warnings and process states. The Pfannenberg QUADRO LED-HI range combines high optical performance, configurable signalling modes and robust mechanical protection for demanding industrial applications.
The QUADRO LED-HI DC CL is designed for flexible integration into automation systems where clear, adjustable and reliable visual indication is required. Its wide DC voltage range and durable enclosure make it suitable for a wide variety of industrial signalling tasks.
| Manufacturer | Pfannenberg |
|---|---|
| Product type | LED multifunction signalling light |
| Series | QUADRO LED-HI |
| Model | QUADRO LED HI DC CL |
| Part number | 21108631000 |
| Operating voltage | 11–60 V DC |
| Rated voltage | 12–48 V DC |
| Current consumption | approx. 165 mA at 24 V DC |
| Light source | 4 high-output LEDs |
| Light intensity | 75 cd (reducible) |
| Maximum viewing distance | approx. 201 m |
| Operating modes | Continuous light, blinking light and flashing light |
| Protection rating | IP66 / IP67 |
| Impact resistance | IK08 |
| Housing material | Polycarbonate (PC) |
| Operating temperature | -40 °C to +55 °C |
| Dimensions (H × W × D) | 130 × 130 × 130 mm |
| Service life | ≥50,000 hours |
The Pfannenberg 21108631000 is an LED multifunction signalling light used for industrial visual indication and machine status signalling.
The device operates from a 12–48 V DC supply with an operating range of 11–60 V DC.
The QUADRO LED-HI DC CL supports continuous light, blinking light and flashing light operating modes.
The device provides IP66/IP67 protection and IK08 impact resistance for reliable industrial operation.
The device has dimensions of 130 mm height, 130 mm width and 130 mm depth.
Pfannenberg signalling products are trusted worldwide to provide reliable LED indication, improved operator awareness and dependable communication in industrial automation and safety applications.
