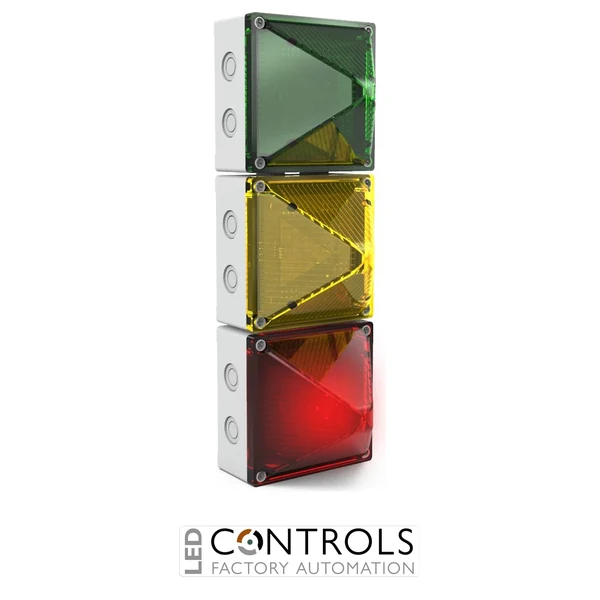

Pfannenberg 21106640008 QUADRO-LED-TL RD YE GN HV LED traffic light signalling device with red, yellow and green indication for industrial automation applications.
£1,254.94
The Pfannenberg QUADRO-LED-TL RD YE GN HV is a powerful and reliable LED traffic light signalling device designed for clear visual indication in industrial automation, machinery and infrastructure applications. As part of the Pfannenberg QUADRO LED-TL range, it combines high-performance LED technology with a robust enclosure design to provide dependable status signalling in demanding environments.
This QUADRO-LED-TL RD YE GN HV continuous light features red, yellow and green LED signal elements and operates from a 115/230 V AC supply. It is designed for applications including non-public traffic routing, conveyor and storage systems, crane safety and container handling where clear machine and process status indication is required.
With a compact modular housing measuring 130 mm width and 130 mm depth, the Pfannenberg 21106640008 provides a durable signalling solution with IP66 protection, IK08 impact resistance and UV-resistant polycarbonate housing for industrial environments.
LED traffic lights provide operators with immediate visual feedback of machine conditions, process states and safety information. The Pfannenberg QUADRO LED-TL range combines bright LED technology with robust mechanical protection to deliver dependable industrial signalling performance.
The QUADRO-LED-TL RD YE GN HV is designed for integration into automation systems where clear red, yellow and green status indication is required, helping improve operator awareness and process monitoring.
| Manufacturer | Pfannenberg |
|---|---|
| Product type | LED traffic light / continuous signalling light |
| Series | QUADRO LED-TL |
| Model | QUADRO-LED-TL RD YE GN HV |
| Part number | 21106640008 |
| Operating voltage | 90–253 V AC |
| Rated voltage | 115/230 V AC |
| Frequency | 50 / 60 Hz |
| Current consumption | 3 × 45 mA at 230 V AC |
| Light source | 4 high-performance LEDs each |
| Lens colours | Red / Yellow / Green |
| Light intensity | >75 cd (reducible) |
| Operating modes | Continuous, blinking and flashing light |
| Protection rating | IP66 |
| Impact resistance | IK08 |
| Housing material | UV-resistant polycarbonate (PC) |
| Operating temperature | -40 °C to +55 °C |
| Dimensions | 396 × 130 × 130 mm |
The Pfannenberg 21106640008 is an LED traffic light signalling device used for industrial status indication, automation and safety applications.
The device operates from a 115/230 V AC supply with an operating range of 90–253 V AC.
This model includes red, yellow and green LED signal elements for clear visual status indication.
The QUADRO LED-TL provides IP66 protection and IK08 impact resistance for industrial applications.
The device has dimensions of 396 mm height, 130 mm width and 130 mm depth.
Pfannenberg signalling products are trusted worldwide to provide reliable LED indication, improved operator awareness and dependable communication in industrial automation and safety applications.
