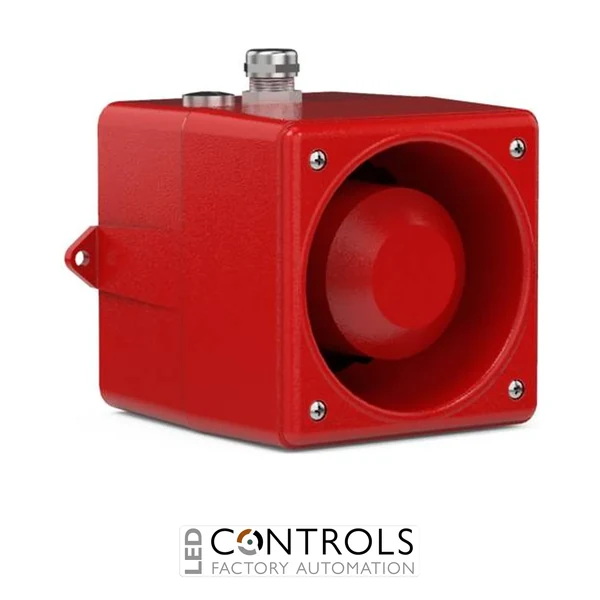

Pfannenberg DS sounder DS 10-SIL 24 DCDS 10-SIL 24 DC
Pfannenberg DS 10-SIL 24V DC safety sounder, a SIL-rated industrial audible alarm device designed for reliable warning and safety signalling applications.
SKU:23111800601MPN:23111800601
Price on applicationContact us for pricing and availability.
Pfannenberg 23111800601 DS 10-SIL 24V DC Safety Sounder SIL 2 / PL d Industrial Alarm
The Pfannenberg 23111800601 DS 10-SIL is a safety-related industrial audible sounder designed for use in Safety Instrumented Systems (SIS) requiring dependable warning signalling performance.
This 24V DC safety sounder provides a powerful 114 dB(A) acoustic output, selectable alarm tones, and rugged IP66/IP67 aluminium construction for harsh industrial environments.
The DS 10-SIL is designed for safety applications up to SIL 2 / Performance Level PL d, making it suitable for process safety, machine safety, and industrial emergency warning systems.
Featuring Pfannenberg pressure chamber sound technology, the DS 10-SIL provides excellent penetration of acoustic obstacles such as walls and doors.
With 31 selectable alarm tones, 4-stage programmability, internal volume control, and a durable die-cast aluminium housing, the 23111800601 delivers reliable audible notification for demanding safety-critical applications.
Key Features
Manufacturer: Pfannenberg
Part Number: 23111800601
Product Series: DS 10-SIL
24V DC safety-related industrial sounder
SIL 2 / PL d compliant safety signalling
Sound output up to 114 dB(A)
31 selectable alarm tones
4-stage tone programming
Internal volume control
IP66/IP67 protected die-cast aluminium housing
Pressure chamber sound system for improved acoustic penetration
Suitable for indoor and outdoor industrial applications
Red RAL 3000 flame-resistant finish
10-year manufacturer warranty
Applications
The Pfannenberg 23111800601 DS 10-SIL sounder is suitable for safety-critical industrial applications including:
Safety Instrumented Systems (SIS)
Process and plant safety systems
Machine start-up warnings
Emergency shutdown signalling
Gas leak and hazard warnings
Factory automation systems
Manufacturing equipment safety
Fire and evacuation alarm systems
Why Choose Pfannenberg 23111800601?
The Pfannenberg DS 10-SIL combines functional safety capability with powerful audible signalling performance.
Its SIL 2 / PL d suitability, high acoustic output, rugged aluminium enclosure, and IP66/IP67 protection make it an ideal choice for industrial environments where dependable warning signals are essential.
Technical Specifications
Tick the specs you need, then view products that match.
Sound Output Level
114 dB(A)
Coil / Supply Voltage
24 V DC
Device Type
Signal Tower / Beacon
Brand
Pfannenberg
Model
DS 10-SIL 24 DC
Part Number
23111800601
Operating Voltage
24V DC
Operating Range
19V - 29V DC
Current Consumption
420mA
Sound Pressure Level
114 dB(A)
Alarm Tones
31 selectable tones
Safety Classification
SIL 2 / PL d
Protection Rating
IP66 / IP67
Housing Material
Die-cast aluminium GD-Al Si12 Cu
Housing Colour
RAL 3000 Flame Red
Dimensions
143 x 133.5 x 133.5 mm
Operating Temperature
-40°C to +55°C
Weight
Approx. 2.15 kg
HS Code
85318070
IP Rating
IP66, IP67
Colour
Red
Frequently Asked Questions
What is Pfannenberg 23111800601?
Pfannenberg 23111800601 is a DS 10-SIL 24V DC safety sounder designed for audible warning applications in Safety Instrumented Systems.
What voltage does the Pfannenberg DS 10-SIL 23111800601 use?
The sounder operates from a 24V DC supply with an operating range of 19V to 29V DC.
Is Pfannenberg 23111800601 suitable for safety systems?
Yes. The DS 10-SIL series is designed for Safety Instrumented Systems up to SIL 2 and Performance Level PL d.
How loud is the Pfannenberg 23111800601?
The DS 10-SIL provides a maximum sound output of approximately 114 dB(A).
Sound Output Level
114 dB(A)
Coil / Supply Voltage
24 V DC
Device Type
Signal Tower / Beacon
Brand
Pfannenberg
Model
DS 10-SIL 24 DC
Part Number
23111800601
Operating Voltage
24V DC
Operating Range
19V - 29V DC
Current Consumption
420mA
Sound Pressure Level
114 dB(A)
Alarm Tones
31 selectable tones
Safety Classification
SIL 2 / PL d
Protection Rating
IP66 / IP67
Housing Material
Die-cast aluminium GD-Al Si12 Cu
Housing Colour
RAL 3000 Flame Red
Dimensions
143 x 133.5 x 133.5 mm
Operating Temperature
-40°C to +55°C
Weight
Approx. 2.15 kg
HS Code
85318070
IP Rating
IP66, IP67
Colour
Red
