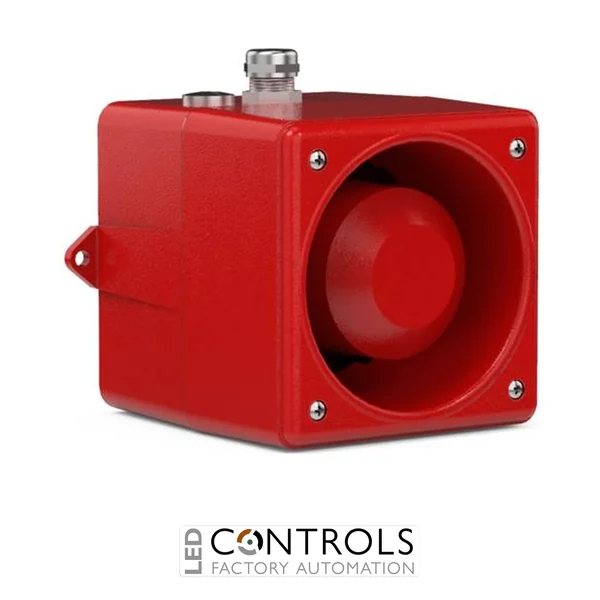

Pfannenberg 23106100601 DS 5-SIL Industrial Multi-Tone Sounder 230V AC
The Pfannenberg 23106100601 DS 5-SIL Sounder is a
safety-related industrial audible signaling device designed for demanding
applications where dependable warning notification is required. Featuring
SIL/PL conformity, 230V AC operation, 31 selectable alarm tones, and a
robust IP66/IP67 aluminium enclosure, this sounder is ideal for safety
instrumented systems, machinery safety, process plants, and industrial
alarm applications.
The DS 5-SIL series uses a pressure chamber sound system that provides
excellent acoustic penetration through obstacles such as walls and doors.
The 23106100601 model supports implementation in Safety Instrumented Systems
up to SIL 2 / Performance Level PL d and includes integrated monitoring
functions for safety-related applications.
Key Features
- Manufacturer: Pfannenberg
- Part Number: 23106100601
- Series: DS 5-SIL
- Safety-related industrial sounder
- 230V AC operating voltage
- SIL 2 / PL d suitable safety applications
- 108 dB(A) nominal sound output
- 31 selectable alarm tones
- 4-stage tone programming
- Integrated self-monitoring function
- Pressure chamber horn sound system
- IP66/IP67 protection rating
- Die-cast aluminium housing
- Suitable for indoor and outdoor industrial environments
Applications
The Pfannenberg 23106100601 DS 5-SIL sounder is suitable for safety
instrumented systems, process plant alarms, machine start-up warnings,
emergency shutdown notifications, industrial automation, manufacturing
facilities, and other safety-critical environments.
