Pfannenberg Ex-Sounder BExS 110D-C 24V DCBExS 110D-C 24 DC

Pfannenberg BExS 110D-C 24 DC is a 24 V DC ATEX explosion-protected electronic sounder delivering up to 113 dB(A) with 32 selectable tones and three alarm stages for hazardous-area industrial warning, emergency and evacuation signalling.

SKU: 32080800000MPN: 32080800000

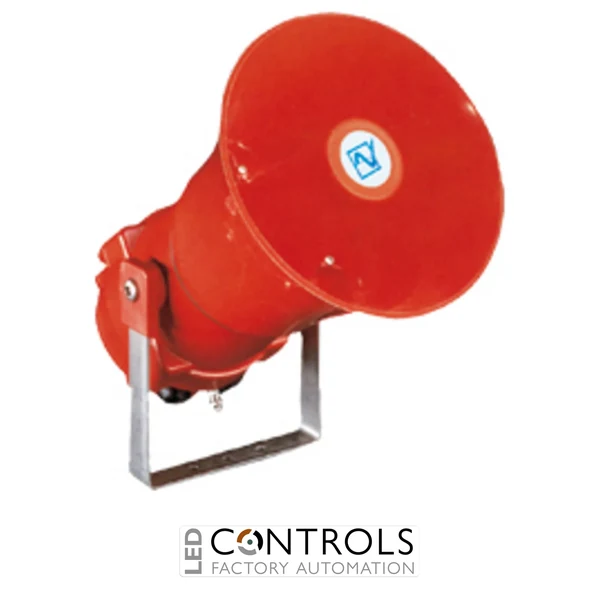

Pfannenberg 32080800000 BExS 110D-C 24V DC Ex-ATEX Explosion Proof Sounder

The Pfannenberg 32080800000 is a BExS 110D-C explosion-protected electronic sounder designed for hazardous industrial environments. This ATEX-certified audible signaling device provides powerful alarm notification with up to 113 dB(A) sound output, 32 selectable alarm tones, and rugged construction for demanding applications including oil and gas facilities, chemical plants, offshore installations, and industrial automation systems.

Product Overview

The Pfannenberg BExS 110D-C 32080800000 operates on a 24V DC supply and is designed for hazardous areas requiring dependable audible warning signals. The unit features ATEX explosion protection, IP66/IP67 environmental protection, a die-cast aluminium LM6 housing, ABS horn, stainless steel mounting bracket with 360° positioning, and 32 selectable alarm tones for flexible industrial signaling.

Key Features

Manufacturer: Pfannenberg
Part Number: 32080800000
Model: BExS 110D-C
Product Type: Ex-ATEX electronic sounder
Supply Voltage: 24V DC
Operating Voltage Range: 18-30V DC
Sound Output: Up to 113 dB(A)
32 selectable alarm tones
3 externally selectable tone stages
Positive and negative control possible for DC devices
Quartz-stabilised tone synchronization
Adjustable volume control
ATEX certified hazardous area protection
IP66/IP67 protection rating
Die-cast aluminium LM6 housing
ABS projection horn
Stainless steel mounting bracket for flexible installation

Applications

The Pfannenberg 32080800000 is suitable for hazardous area alarm applications including oil and gas facilities, refineries, chemical processing plants, offshore platforms, marine environments, manufacturing facilities, and industrial equipment requiring reliable audible warning systems.

Benefits

High-output audible alarm for industrial warning applications
Certified for explosive and hazardous environments
Multiple selectable tones for different alarm conditions
Durable aluminium construction for harsh environments
Weather-resistant IP66/IP67 enclosure
Wide operating temperature range
Flexible mounting orientation with stainless steel bracket

Why Choose Pfannenberg 32080800000?

Pfannenberg BExS 110D-C sounders provide dependable signaling performance where safety is critical. The 32080800000 combines powerful acoustic output, ATEX-certified protection, and rugged industrial construction to provide reliable alarm notification in hazardous locations.

Technical Specifications

Tick the specs you need, then view products that match.

Sound Output Level	113 dB(A)
Coil / Supply Voltage	24 V DC
Product Series	Pfannenberg BExS
Device Type	Signal Tower / Beacon
Specification Value Brand	Pfannenberg
SKU	32080800000
Series	BExS 110D-C
Voltage	24V DC
Operating Voltage Range	18-30V DC
Maximum Current Consumption	0.27A
Maximum Sound Level	113 dB(A)
Alarm Tones	32 selectable tones
External Tone Selection	3 selectable tones
Protection Rating	IP66/IP67
Hazardous Area Classification	ATEX Category 2G / 2D, Zone 1, 2, 21 and 22
Operating Temperature	-50°C to +70°C
Housing Material	Die-cast Aluminium LM6
Dimensions	181 x 181 x 263 mm
Weight	Approx. 3.16 kg
HS Code	85318070
IP Rating	IP66, IP67

Frequently Asked Questions

What is the Pfannenberg 32080800000?

The Pfannenberg 32080800000 is a BExS 110D-C 24V DC Ex-ATEX electronic sounder designed for hazardous area alarm signaling.

What voltage does the Pfannenberg 32080800000 use?

The Pfannenberg 32080800000 operates from a 24V DC power supply with an operating range of 18-30V DC.

How loud is the Pfannenberg 32080800000?

The BExS 110D-C provides a maximum sound output of up to 113 dB(A), depending on operating conditions and selected tone.

Where can the Pfannenberg 32080800000 be installed?

It is designed for hazardous industrial environments including ATEX Zone 1, Zone 2, Zone 21, and Zone 22 applications.

Sound Output Level	113 dB(A)
Coil / Supply Voltage	24 V DC
Product Series	Pfannenberg BExS
Device Type	Signal Tower / Beacon
Specification Value Brand	Pfannenberg
SKU	32080800000
Series	BExS 110D-C
Voltage	24V DC
Operating Voltage Range	18-30V DC
Maximum Current Consumption	0.27A
Maximum Sound Level	113 dB(A)
Alarm Tones	32 selectable tones
External Tone Selection	3 selectable tones
Protection Rating	IP66/IP67
Hazardous Area Classification	ATEX Category 2G / 2D, Zone 1, 2, 21 and 22
Operating Temperature	-50°C to +70°C
Housing Material	Die-cast Aluminium LM6
Dimensions	181 x 181 x 263 mm
Weight	Approx. 3.16 kg
HS Code	85318070
IP Rating	IP66, IP67
