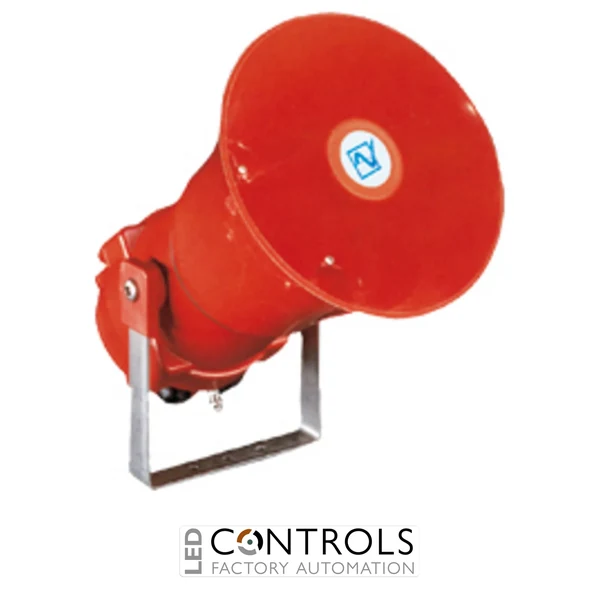

Pfannenberg 32082850000 BExS 110E-C 12V DC Ex-ATEX Explosion Proof Sounder
The Pfannenberg 32082850000 is a BExS 110E-C explosion-protected electronic sounder designed for hazardous industrial environments requiring reliable audible alarm signaling. This ATEX-certified sounder operates on a 12V DC supply and provides powerful acoustic notification up to 113 dB(A), with 32 selectable alarm tones and rugged construction for demanding industrial safety applications.
Product Overview
The Pfannenberg BExS 110E-C 32082850000 is engineered for hazardous area signaling applications including Zones 1 and 2 gas environments and Zones 21 and 22 dust environments. The sounder features Ex protection, a durable die-cast aluminium LM6 housing, ABS horn, stainless steel mounting bracket with 360° positioning, and flexible alarm tone configuration for industrial safety systems.
Key Features
Manufacturer: Pfannenberg
Part Number: 32082850000
Model: BExS 110E-C
Product Type: Ex-ATEX electronic sounder
Supply Voltage: 12V DC
Operating Voltage Range: 9-15V DC
Sound Output: Up to 113 dB(A)
32 selectable alarm tones
4 externally selectable tones
Adjustable volume control
Quartz-stabilised tone synchronization
ATEX explosion protection approval
IP66/IP67 protection rating
Die-cast aluminium LM6 housing
ABS flame-retardant projection horn
Stainless steel mounting bracket for 360° positioning
Applications
The Pfannenberg 32082850000 is suitable for hazardous area alarm applications including oil and gas facilities, refineries, chemical processing plants, offshore installations, marine environments, manufacturing facilities, and industrial automation systems where dependable audible warning signals are required.
Benefits
High-output audible alarm for industrial warning applications
Certified for explosive gas and hazardous environments
Multiple selectable tones for different alarm conditions
Durable aluminium housing for harsh industrial use
Weather-resistant IP66/IP67 enclosure
Wide operating temperature capability
Flexible mounting orientation with stainless steel bracket
Reliable performance for safety-critical installations
Why Choose Pfannenberg 32082850000?
Pfannenberg BExS 110E-C sounders are engineered for reliable signaling in hazardous industrial locations. The 32082850000 combines ATEX-certified protection, powerful audible output, flexible tone selection, and rugged construction for demanding process, marine, and manufacturing environments.
Technical Specifications
Tick the specs you need, then view products that match.
Sound Output Level
113 dB(A)
Coil / Supply Voltage
12 V DC
Product Series
Pfannenberg BExS
Device Type
Signal Tower / Beacon
Specification Value Brand
Pfannenberg
SKU
32082850000
Series
BExS 110E-C
Voltage
12V DC
Maximum Sound Level
113 dB(A)
Alarm Tones
32 selectable tones
External Tone Selection
4 selectable tones
Protection Rating
IP66/IP67
Hazardous Area Classification
Zone 1, Zone 2, Zone 21 and Zone 22
Operating Temperature
-50°C to +70°C
Housing Material
Die-cast Aluminium LM6
Horn Material
ABS
Dimensions
181 x 181 x 275 mm
HS Code
85318070
IP Rating
IP66, IP67
Frequently Asked Questions
What is the Pfannenberg 32082850000?
The Pfannenberg 32082850000 is a BExS 110E-C 12V DC Ex-ATEX electronic sounder designed for hazardous area alarm signaling.
What voltage does the Pfannenberg 32082850000 use?
The Pfannenberg 32082850000 operates from a 12V DC power supply.
How loud is the Pfannenberg 32082850000?
The BExS 110E-C provides a maximum sound output of up to 113 dB(A), depending on operating conditions and selected tone.
Where can the Pfannenberg 32082850000 be installed?
It is designed for hazardous industrial environments including ATEX Zone 1, Zone 2, Zone 21, and Zone 22 applications.
Sound Output Level
113 dB(A)
Coil / Supply Voltage
12 V DC
Product Series
Pfannenberg BExS
Device Type
Signal Tower / Beacon
Specification Value Brand
Pfannenberg
SKU
32082850000
Series
BExS 110E-C
Voltage
12V DC
Maximum Sound Level
113 dB(A)
Alarm Tones
32 selectable tones
External Tone Selection
4 selectable tones
Protection Rating
IP66/IP67
Hazardous Area Classification
Zone 1, Zone 2, Zone 21 and Zone 22
Operating Temperature
-50°C to +70°C
Housing Material
Die-cast Aluminium LM6
Horn Material
ABS
Dimensions
181 x 181 x 275 mm
HS Code
85318070
IP Rating
IP66, IP67
