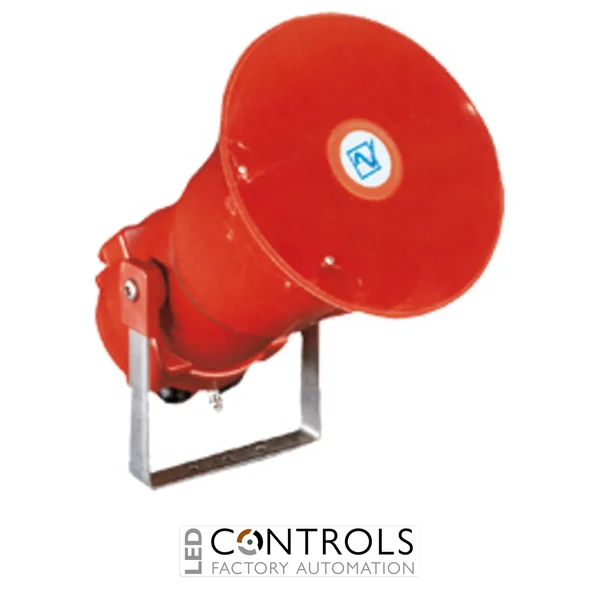

Pfannenberg Ex-Sounder BExS 110E-C 24V DCBExS 110E-C 24 DC

Pfannenberg BExS 110E-C 24V DC explosion-protected electronic sounder with 113 dB(A) output for hazardous industrial signalling applications.

SKU: 32082800000MPN: 32082800000

Pfannenberg 32082800000 BExS 110E-C 24V DC Ex-ATEX Explosion Proof Sounder

The Pfannenberg 32082800000 is a BExS 110E-C explosion-protected electronic sounder designed for hazardous industrial environments requiring reliable audible alarm signaling. This ATEX-certified sounder delivers powerful acoustic notification up to 113 dB(A), offers 32 selectable alarm tones, and provides robust construction for demanding applications including oil and gas, chemical processing, offshore installations, and industrial automation systems.

Product Overview

The Pfannenberg BExS 110E-C 32082800000 operates on a 24V DC supply and is engineered for hazardous area signaling applications. The unit features Ex db / Ex db eb / Ex tb protection, ATEX approval, IP66/IP67 protection, a die-cast aluminium LM6 housing, ABS horn, stainless steel mounting bracket with 360° positioning, and flexible alarm tone configuration.

Key Features

Manufacturer: Pfannenberg
Part Number: 32082800000
Model: BExS 110E-C
Product Type: Ex-ATEX hazardous area electronic sounder
Supply Voltage: 24V DC
Operating Voltage Range: 18-30V DC
Sound Output: Up to 113 dB(A)
32 selectable alarm tones
4 externally selectable tones
Adjustable volume control
Quartz-stabilised tone synchronization
ATEX explosion protection approval
Ex db / Ex db eb / Ex tb protection concept
IP66/IP67 protection rating
Die-cast aluminium LM6 housing
ABS flame-retardant projection horn
Stainless steel mounting bracket for 360° positioning

Applications

The Pfannenberg 32082800000 is suitable for hazardous area alarm applications including oil and gas facilities, refineries, chemical processing plants, offshore platforms, marine environments, manufacturing facilities, and industrial equipment requiring dependable audible warning systems.

Benefits

High-output audible alarm for industrial warning applications
Certified for explosive gas and hazardous environments
Multiple selectable tones for different alarm conditions
Durable aluminium housing for harsh industrial use
Weather-resistant IP66/IP67 enclosure
Wide operating temperature capability
Flexible mounting orientation with stainless steel bracket
Reliable performance for safety-critical installations

Why Choose Pfannenberg 32082800000?

Pfannenberg BExS 110E-C sounders are engineered for reliable signaling in hazardous industrial locations. The 32082800000 combines ATEX-certified protection, powerful 113 dB(A) audible output, flexible tone configuration, and rugged construction for demanding process and manufacturing environments.

Technical Specifications

Tick the specs you need, then view products that match.

Sound Output Level	113 dB(A)
Coil / Supply Voltage	24 V DC
Product Series	Pfannenberg BExS
Device Type	Signal Tower / Beacon
Specification Value Brand	Pfannenberg
SKU	32082800000
Series	BExS 110E-C
Voltage	24V DC
Operating Voltage Range	18-30V DC
Maximum Current Consumption	0.27A
Maximum Sound Level	113 dB(A)
Alarm Tones	32 selectable tones
External Tone Selection	4 selectable tones
Protection Rating	IP66/IP67
Hazardous Area Classification	Zone 1, Zone 2, Zone 21 and Zone 22
Operating Temperature	-50°C to +70°C
Housing Material	Die-cast Aluminium LM6
Horn Material	ABS
Dimensions	181 x 181 x 275 mm
Weight	Approx. 3.42 kg
HS Code	85318070
IP Rating	IP66, IP67

Frequently Asked Questions

What is the Pfannenberg 32082800000?

The Pfannenberg 32082800000 is a BExS 110E-C 24V DC Ex-ATEX electronic sounder designed for hazardous area alarm signaling.

What voltage does the Pfannenberg 32082800000 use?

The Pfannenberg 32082800000 operates from a 24V DC power supply.

How loud is the Pfannenberg 32082800000?

The BExS 110E-C provides a maximum sound output of up to 113 dB(A), depending on operating conditions and selected tone.

Where can the Pfannenberg 32082800000 be installed?

It is designed for hazardous industrial environments including ATEX Zone 1, Zone 2, Zone 21, and Zone 22 applications.

Sound Output Level	113 dB(A)
Coil / Supply Voltage	24 V DC
Product Series	Pfannenberg BExS
Device Type	Signal Tower / Beacon
Specification Value Brand	Pfannenberg
SKU	32082800000
Series	BExS 110E-C
Voltage	24V DC
Operating Voltage Range	18-30V DC
Maximum Current Consumption	0.27A
Maximum Sound Level	113 dB(A)
Alarm Tones	32 selectable tones
External Tone Selection	4 selectable tones
Protection Rating	IP66/IP67
Hazardous Area Classification	Zone 1, Zone 2, Zone 21 and Zone 22
Operating Temperature	-50°C to +70°C
Housing Material	Die-cast Aluminium LM6
Horn Material	ABS
Dimensions	181 x 181 x 275 mm
Weight	Approx. 3.42 kg
HS Code	85318070
IP Rating	IP66, IP67
