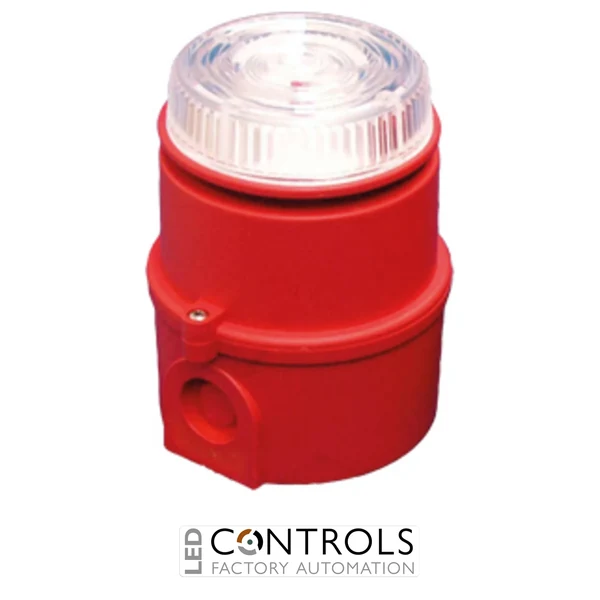

Pfannenberg 32035805000 IS-mC1 ATEX Explosion-Protected Red LED Sounder Beacon 24V DC
The Pfannenberg 32035805000 is an IS-mC1 intrinsically safe ATEX LED sounder beacon designed for combined visual and audible alarm signalling in hazardous industrial environments. Featuring a red LED flashing light, integrated electronic sounder, 24 V DC operation, and certification for ATEX Zones 0, 1, and 2, this compact signalling device provides reliable warning indication in explosive atmospheres.
Designed for safety-critical industrial applications, the Pfannenberg IS-mC1 combines a high-output audible alarm with a bright LED visual indicator in one compact enclosure. The unit provides 49 selectable tones, adjustable sound level, low power consumption, and intrinsically safe operation when installed using approved zener barriers or galvanic isolators.
Key Features
- Intrinsically safe ATEX LED sounder beacon for hazardous areas
- Manufacturer part number: 32035805000
- Series: Pfannenberg IS-mC1
- Red LED flashing light output
- Integrated electronic sounder
- 24 V DC rated operating voltage
- Operating voltage range: 16–28 V DC
- Certified for ATEX Zones 0, 1 and 2
- 49 selectable alarm tones
- Sound output up to 102 dB(A)
- Selectable flash frequency: 1 Hz or 2 Hz
- Compact 88 mm diameter design
- IP65 protection rating
Applications
The Pfannenberg 32035805000 IS-mC1 is suitable for hazardous-area alarm applications including chemical processing plants, oil and gas facilities, fire alarm systems, process industries, manufacturing environments, and industrial safety installations requiring combined audible and visual signalling.
Why Choose Pfannenberg 32035805000?
The Pfannenberg IS-mC1 provides an efficient combined signalling solution by integrating LED visual indication and a powerful electronic sounder in one compact intrinsically safe device. Its low power consumption, selectable alarm tones, and ATEX compatibility make it suitable for demanding safety applications in explosive environments.
