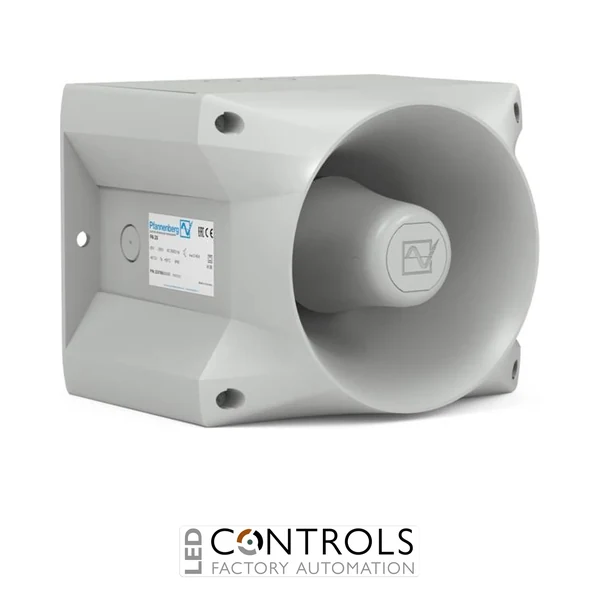

Pfannenberg 23360630055 PA 10 PATROL Series Electronic Sounder
The Pfannenberg 23360630055 is a PA 10 PATROL Series
electronic sounder designed for industrial alarm, warning, and safety applications.
This high-performance audible signaling device provides powerful sound output, excellent
acoustic penetration, and flexible alarm configuration for demanding industrial
environments. The unit operates with a 10–60 V DC supply range and
features a grey housing suitable for industrial installations.
The PA 10 delivers a maximum sound pressure level of up to 117 dB(A)
and includes 80 stored alarm tones with four selectable alarm stages.
Its wide frequency range and strong low-frequency output allow sound to penetrate
obstacles such as doors and walls, improving warning coverage in large industrial
facilities.
Key Features
- Manufacturer: Pfannenberg
- Model / SKU: 23360630055
- Series: PATROL PA 10
- Electronic industrial sounder
- Supply voltage: 10–60 V DC
- Nominal voltage: 12 / 24 / 48 V DC
- Grey housing colour
- Maximum sound output: 117 dB(A)
- 80 stored alarm tones
- 64 selectable basic tones
- 4 externally selectable alarm stages
- Internal volume control
- Excellent acoustic penetration through doors and walls
- IP66 ingress protection
- UL Type 4/4X protection
- IK08 impact-resistant housing
- Surface or flush-panel mounting capability
Applications
The Pfannenberg 23360630055 PA 10 is suitable for industrial automation systems,
machinery alarms, manufacturing plants, process control environments, emergency
notification systems, and safety installations requiring a powerful audible warning
device.
Why Choose Pfannenberg 23360630055?
The PA 10 provides dependable industrial alarm signaling with high sound output,
flexible tone selection, and rugged environmental protection. Its efficient acoustic
coverage, impact-resistant enclosure, and IP66 protection make it an effective solution
for demanding industrial warning applications.
