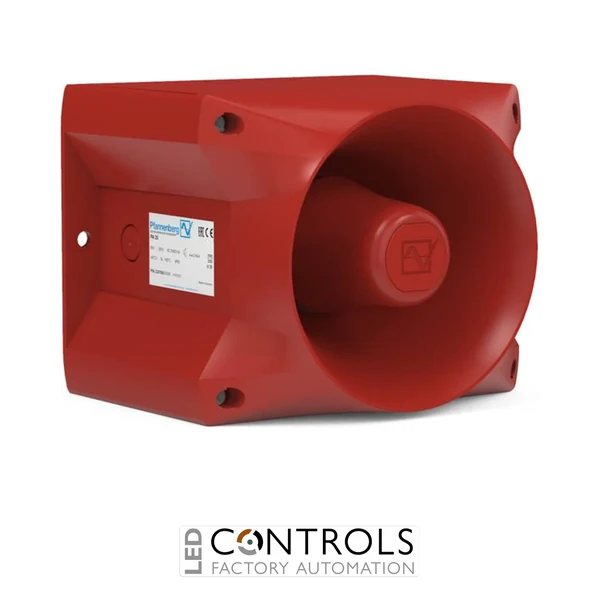

Pfannenberg 23360630000 PA 10 PATROL Series Electronic Sounder
The Pfannenberg 23360630000 is a PA 10 PATROL Series
electronic sounder designed for industrial alarm, warning, and safety applications.
This high-performance audible signaling device provides powerful sound output, excellent
acoustic penetration, and flexible alarm configuration for demanding industrial
environments. The unit operates across a 10–60 V DC supply range and
features a red housing.
The PA 10 sounder delivers up to 117 dB(A) sound pressure level and
includes 80 stored alarm tones with four selectable alarm stages.
Its extremely broad frequency range and high proportion of low-frequency tones improve
sound penetration through obstacles such as doors and walls, reducing the number of
sounders required in large industrial areas.
Key Features
- Manufacturer: Pfannenberg
- Model / SKU: 23360630000
- Series: PATROL PA 10
- Electronic industrial sounder
- Supply voltage: 10–60 V DC
- Rated voltage: 12 / 24 / 48 V DC
- Red housing colour
- Maximum sound output: 117 dB(A)
- 80 stored alarm tones
- 64 selectable basic tones
- 4 alarm stages with external tone selection
- Internal volume control
- Excellent acoustic penetration through walls and doors
- IP66 protection rating
- UL Type 4/4X protection
- IK08 impact-resistant housing
- Surface or flush-panel mounting capability
Applications
The Pfannenberg 23360630000 PA 10 is suitable for industrial automation systems,
machinery alarms, manufacturing plants, process control environments, emergency
notification systems, and safety installations requiring a powerful audible warning
device.
Why Choose Pfannenberg 23360630000?
The PA 10 provides dependable industrial alarm signaling with high sound output,
flexible tone selection, and rugged environmental protection. Its intelligent mounting
design, impact-resistant enclosure, and strong acoustic coverage make it an effective
solution for large industrial facilities and harsh operating environments.
