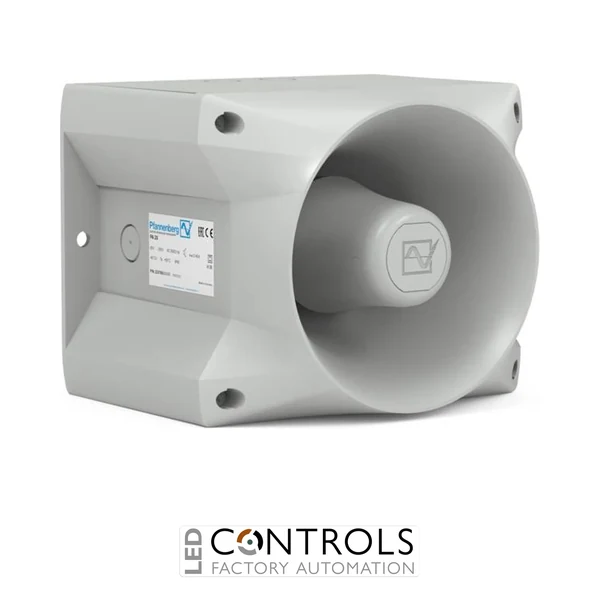

Pfannenberg 23360640055 PA 10 PATROL Series Electronic Sounder
The Pfannenberg 23360640055 is a PA 10 PATROL Series
electronic sounder designed for industrial alarm, warning, and safety applications.
This powerful audible signaling device provides high sound output, excellent acoustic
penetration, and flexible alarm configuration for demanding industrial environments.
The unit features a grey housing, operates from a 95–265 V AC supply
range, and is designed for reliable surface or panel mounting installations.
The PA 10 delivers a maximum sound pressure level of 117 dB(A) and
includes 80 stored alarm tones with four externally selectable alarm
stages. Its broad frequency range and strong low-frequency output improve sound
penetration through obstacles such as doors and walls, allowing effective warning
coverage across large industrial areas.
Key Features
- Manufacturer: Pfannenberg
- Model / SKU: 23360640055
- Series: PATROL PA 10
- Electronic industrial sounder
- Supply voltage: 95–265 V AC
- Nominal voltage: 115 / 230 V AC
- Grey housing colour (RAL 7035)
- Maximum sound output: 117 dB(A)
- 80 stored alarm tones
- 64 selectable basic tones
- 4 externally selectable alarm stages
- Internal volume control
- Excellent acoustic penetration through walls and doors
- IP66 ingress protection
- NEMA Type 4/4X protection
- IK08 impact-resistant housing
- Surface and flush-panel mounting capability
Applications
The Pfannenberg 23360640055 PA 10 is suitable for industrial automation systems,
machinery alarms, manufacturing plants, process control environments, emergency
notification systems, production lines, and safety installations requiring a powerful
audible warning device.
Why Choose Pfannenberg 23360640055?
The PA 10 provides dependable industrial alarm signaling with high acoustic output,
flexible tone selection, and rugged environmental protection. Its efficient sound
coverage, impact-resistant enclosure, and IP66 rating make it an effective solution
for demanding industrial warning applications.
