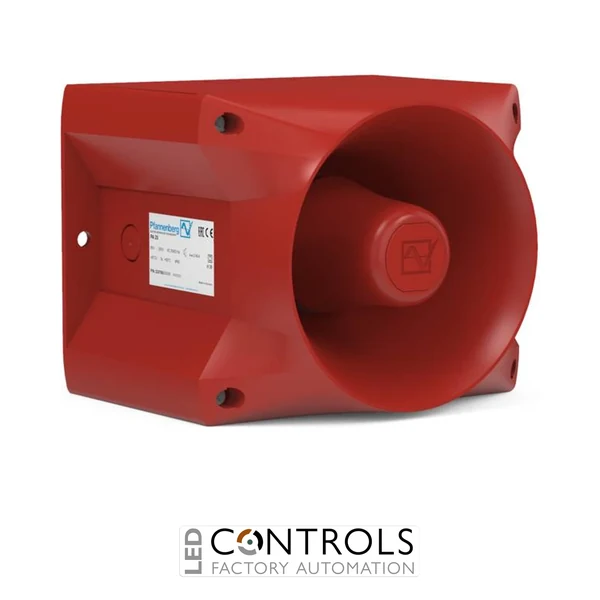

Pfannenberg 23360640001 PA 10 PATROL Series Electronic Sounder
The Pfannenberg 23360640001 is a PA 10 PATROL Series
electronic sounder designed for industrial alarm, warning, and safety applications.
This high-performance audible signaling device provides powerful sound output, excellent
acoustic penetration, and flexible alarm configuration for demanding industrial
environments. The unit operates from a 95–265 V AC supply range and
features a red housing with a design optimized for industrial surface mounting.
The PA 10 delivers a maximum sound pressure level of 117 dB(A) and
provides 80 selectable alarm tones with four externally selectable
alarm stages. Its electromagnetic sound capsule technology improves acoustic
penetration through obstacles such as walls and doors, helping provide effective
warning coverage across large industrial areas.
Key Features
- Manufacturer: Pfannenberg
- Model / SKU: 23360640001
- Series: PATROL PA 10
- Electronic industrial sounder
- Supply voltage: 95–265 V AC
- Rated frequency: 50 / 60 Hz
- Red housing colour
- Maximum sound output: 117 dB(A)
- 80 selectable alarm tones
- 4 externally selectable alarm stages
- Internal volume control
- Excellent acoustic penetration through walls and doors
- IP66 ingress protection
- UL Type 4/4X protection
- IK08 impact-resistant housing
- Polycarbonate / ABS blend enclosure
- Suitable for industrial surface mounting
Applications
The Pfannenberg 23360640001 PA 10 is suitable for industrial automation systems,
machinery alarms, manufacturing plants, process control environments, emergency
notification systems, and safety installations requiring a powerful audible warning
device.
Why Choose Pfannenberg 23360640001?
The PA 10 provides dependable industrial alarm signaling with high sound output,
flexible tone selection, and rugged environmental protection. Its efficient acoustic
coverage, impact-resistant enclosure, and IP66 protection make it an effective solution
for demanding industrial warning applications.
