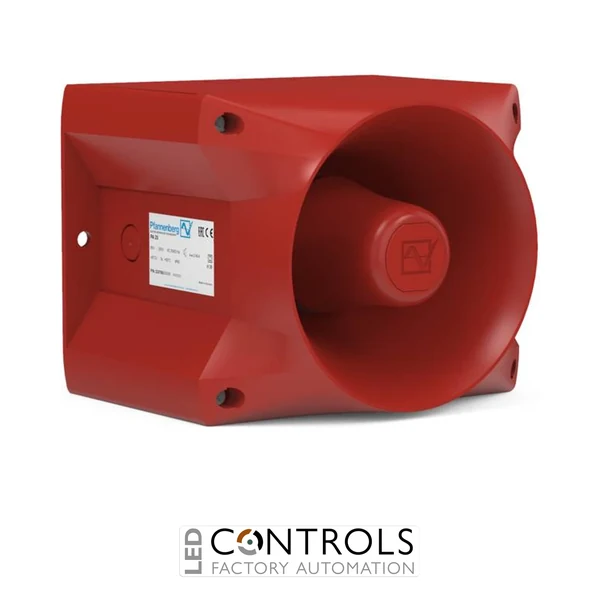

Pfannenberg 23360800005 PA 10-SSM PATROL Series Electronic Sounder
The Pfannenberg 23360800005 is a PA 10-SSM PATROL Series
electronic sounder designed for industrial alarm, warning, and safety applications.
This high-performance audible signaling device combines powerful acoustic output with
reliable installation features, making it suitable for demanding industrial
environments. The unit operates on a 24 V DC supply and includes a
soft start module (SSM) to limit startup peak current.
The PA 10-SSM delivers a maximum sound pressure level of 117 dB(A)
and provides 80 stored alarm tones with four selectable alarm stages.
Its wide frequency range with a high proportion of low tones improves sound penetration
through obstacles such as doors and walls, helping provide effective warning coverage
across large industrial areas.
Key Features
- Manufacturer: Pfannenberg
- Model / SKU: 23360800005
- Series: PATROL PA 10-SSM
- Electronic industrial sounder with Soft Start Module
- Operating voltage: 24 V DC
- Voltage range: 20–30 V DC
- Red housing colour
- Maximum sound output: 117 dB(A)
- 80 stored alarm tones
- 64 selectable basic tones
- 4 alarm stages with external tone selection
- Soft Start Module reduces startup current peak
- Internal volume control
- Excellent acoustic penetration through walls and doors
- IP66 ingress protection
- NEMA Type 4/4X protection
- IK08 impact-resistant housing
- Surface and panel mounting capability
Applications
The Pfannenberg 23360800005 PA 10-SSM is suitable for industrial automation systems,
machinery alarms, manufacturing plants, process control environments, emergency
notification systems, and safety installations requiring a powerful audible warning
device with dependable operation.
Why Choose Pfannenberg 23360800005?
The PA 10-SSM provides reliable industrial alarm signaling with high acoustic output,
flexible tone selection, reduced startup current through soft start technology, and
rugged environmental protection. Its IP66 enclosure, IK08 impact resistance, and
advanced acoustic design make it suitable for harsh industrial applications.
