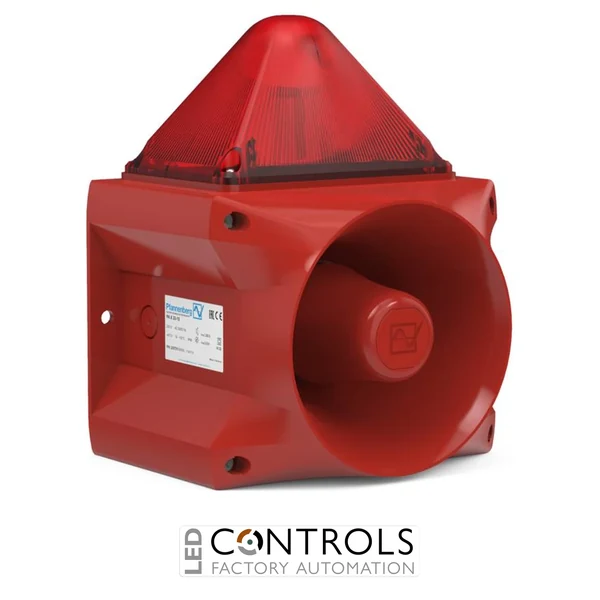

Pfannenberg 23353635000 PA L 5 LED Sounder Beacon Combination
The Pfannenberg 23353635000 is a PATROL Series PA L 5
combined LED sounder beacon designed for industrial alarm, warning, and safety
applications. This compact signaling device combines a powerful electronic sounder with
a red LED flashing beacon to provide reliable audible and visual indication in demanding
industrial environments. The unit features a grey housing with a red lens and operates
from a 12–48 V DC supply range.
The PA L 5 provides strong acoustic performance with a broad frequency range designed
for excellent sound penetration through obstacles such as doors and walls. The sounder
and LED flashing functions can operate independently, while stored alarm tones and
selectable flashing modes provide flexible signaling for a wide range of industrial
applications.
Key Features
- Manufacturer: Pfannenberg
- Model / SKU: 23353635000
- Series: PATROL PA L 5
- Combined LED flashing beacon and electronic sounder
- Supply voltage: 12–48 V DC
- Grey housing with red lens
- Maximum sound output: 107 dB(A)
- 80 stored alarm tones
- 64 selectable basic tones
- 3 additional externally selectable tones
- Independent operation of sounder and flashing light
- Selectable flashing frequencies including 1 Hz and 2 Hz
- IP66 ingress protection
- IK08 impact-resistant housing
- NEMA Type 4/4X protection
- Operating temperature range: -40 °C to +55 °C
Applications
The Pfannenberg 23353635000 PA L 5 is suitable for industrial automation systems,
machinery safety alarms, production equipment, process control installations, emergency
warning systems, and industrial facilities requiring dependable audible and visual
signaling.
Why Choose Pfannenberg 23353635000?
The PA L 5 combines efficient LED visual indication with powerful acoustic signaling in
a rugged industrial enclosure. Its wide voltage range, flexible alarm configuration,
strong sound penetration, and IP66 protection make it suitable for demanding industrial
environments where reliable warning indication is essential.
