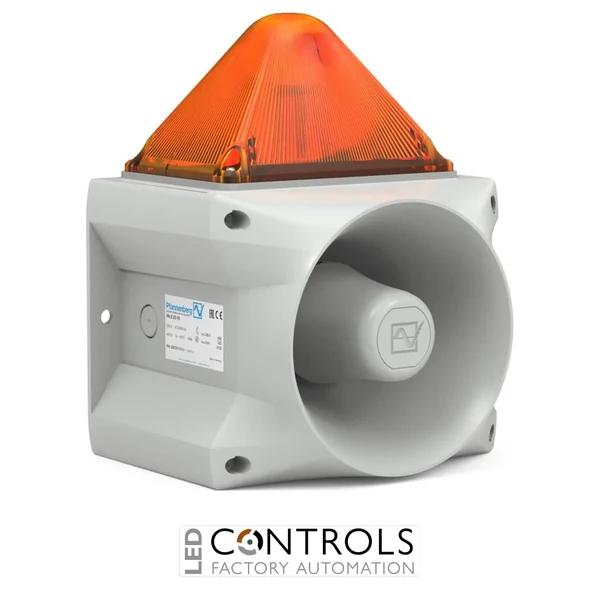

Pfannenberg 23353104055 PA L 5 LED Sounder Beacon Combination
The Pfannenberg 23353104055 is a PATROL Series PA L 5
combined LED sounder beacon designed for industrial alarm, warning, and safety
applications. This compact signaling device combines a high-output electronic sounder
with an amber LED flashing light to provide effective audible and visual indication in
demanding industrial environments. The unit features a grey housing, amber lens, and
operates from a 230 V AC supply.
The PA L 5 provides excellent sound penetration through obstacles such as doors and
walls, with up to 107 dB(A) acoustic output and 80 stored alarm tones.
Its LED signaling technology offers selectable flashing modes, high visibility, and
long service life, while the IP66 and IK08-rated housing provides protection for
industrial applications.
Key Features
- Manufacturer: Pfannenberg
- Model / SKU: 23353104055
- Series: PATROL PA L 5
- Combined LED beacon and electronic sounder
- Supply voltage: 230 V AC
- Amber LED lens with grey housing
- Maximum sound pressure level: 107 dB(A)
- 80 selectable alarm tones
- Multiple flashing and signaling modes
- LED technology for efficient long-life operation
- IP66 protection rating
- IK08 impact-resistant housing
- NEMA Type 4/4X protection
- Operating temperature range: -40 °C to +55 °C
Applications
The Pfannenberg 23353104055 PA L 5 is suitable for industrial automation systems,
manufacturing equipment, process control installations, machinery safety systems,
production lines, and emergency warning applications requiring dependable audible and
visual signaling.
Why Choose Pfannenberg 23353104055?
The PA L 5 provides a reliable all-in-one warning solution by combining powerful sound
output with efficient LED visual indication. Its rugged enclosure, wide operating
temperature range, flexible alarm tone selection, and strong protection ratings make it
ideal for industrial environments where reliable signaling is essential.
