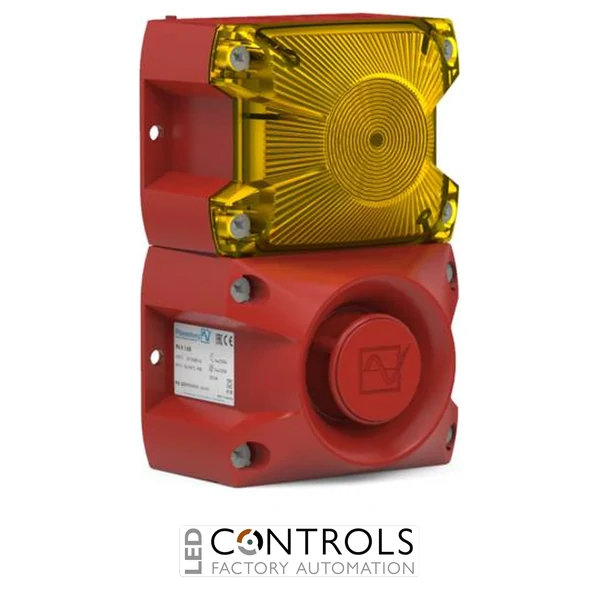

Pfannenberg PATROL series PA X 1-05 230 AC GE GL/MEDPA X 1-05 230 AC YE GL/MED

Pfannenberg PATROL series PA X 1-05 230 AC GE GL/MEDPA X 1-05 230 AC YE GL/MED

Pfannenberg PA X 1-05 23311103001 is a GL/MED marine combined sounder and 5 J yellow xenon flashing light for 230 V AC systems, providing approximately 100 dB(A) acoustic output, 80 stored alarm tones and IP66 protection for maritime and industrial warning applications.

SKU: 23311103001MPN: 23311103001
Price on application Contact us for pricing and availability.
Call 01708 343600

Pfannenberg 23311103001 PATROL PA X 1-05 Flashing Sounder Combination 230V AC Yellow Lens GL/MED

The Pfannenberg 23311103001 PATROL PA X 1-05 is a combined audible and visual signalling device designed for industrial alarm, safety, and notification applications. This compact signal device integrates a powerful electronic sounder with a xenon flashing beacon, providing both acoustic and visual warning indication from a single unit.

Featuring a 230V AC power supply, 5 Joule xenon flash technology, and a high-output sounder with up to 80 selectable alarm tones, the Pfannenberg 23311103001 provides dependable signalling performance for demanding industrial environments. Its rugged enclosure offers IP66 protection, NEMA 4/4X rating, and IK08 impact resistance for reliable operation in harsh conditions.

Product Features

  • Manufacturer: Pfannenberg
  • Part Number: 23311103001
  • Series: PATROL PA X 1-05
  • Product Type: Audible and Visual Signal Combination
  • Supply Voltage: 230V AC
  • Operating Range: 187-255V AC
  • Sound Output: 104 dB(A) @ DIN tone
  • Alarm Tones: 80 selectable tones
  • Flash Technology: Xenon flash tube
  • Flash Energy: 5 Joules
  • Lens Colour: Yellow
  • Housing Colour: RAL 3000 Flame Red
  • Protection Rating: IP66 / NEMA 4/4X
  • Impact Protection: IK08
  • Approvals: GL / MED
  • Warranty: 10 years

Applications

  • Industrial alarm systems
  • Factory automation equipment
  • Machine safety signalling
  • Marine and offshore installations
  • Control panels and switchgear
  • Emergency warning systems
  • Process control environments
  • Building and plant notification systems

Why Choose the Pfannenberg 23311103001?

The Pfannenberg 23311103001 delivers reliable combined audible and visual signalling with a compact industrial design. Its selectable alarm tones, powerful xenon flashing beacon, durable IP66 enclosure, and international GL/MED approvals make it suitable for critical warning applications where clear notification is essential.

Technical Specifications

Tick the specs you need, then view products that match.

Sound Output Level 104 dB(A)
Coil / Supply Voltage 230 V AC
Light Function Xenon flash
Voltage 230 V AC
Product Series Pfannenberg PATROL
Colour Yellow
Specification Value Model PA X 1-05
Article Number 23311103001
Rated Voltage 230V AC 50/60Hz
Operating Voltage Range 187-255V AC
Sound Pressure Level 104 dB(A)
Alarm Tone Selection 80 tones
External Tone Selection 4 tones
Light Source Xenon flash tube
Flash Frequency 1 Hz (60 flashes/min)
Flash Energy 5 Joules
Maximum Viewing Distance 164 m
Dimensions 109.5 x 172.4 x 80.6 mm
Operating Temperature -40°C to +55°C
Protection Rating IP66
HS Code 85318070
IP Rating IP66

Frequently Asked Questions

What voltage does the Pfannenberg 23311103001 operate on?

The Pfannenberg 23311103001 operates from a 230V AC supply with an operating range of approximately 187-255V AC.

How loud is the Pfannenberg 23311103001 sounder?

The integrated sounder produces up to 104 dB(A) sound pressure output using the DIN tone setting.

How many alarm tones are available?

The PATROL PA X 1-05 provides 80 selectable alarm tones with four externally selectable tones.

Is the Pfannenberg 23311103001 suitable for outdoor use?

Yes. The device features IP66 and NEMA 4/4X protection, making it suitable for demanding indoor and outdoor industrial environments.
