Pfannenberg PATROL series PA X 1-05 230 AC GEPA X 1-05 230 AC YE

Pfannenberg PATROL series PA X 1-05 230 AC GEPA X 1-05 230 AC YE

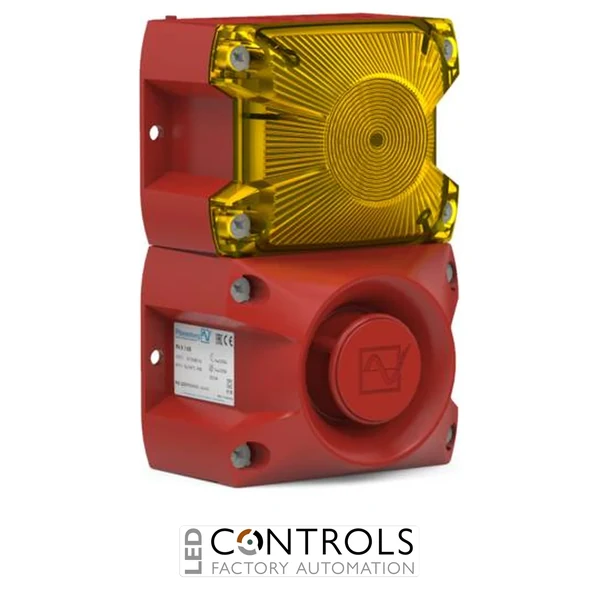

Pfannenberg PA X 1-05 23311103000 is a 230 V AC combined industrial sounder and 5 J xenon flashing light with a yellow lens, red housing, up to 105 dB(A) acoustic output and IP66 protection for machinery, automation and safety warning applications.

SKU: 23311103000MPN: 23311103000
Price on application Contact us for pricing and availability.
Call 01708 343600

Pfannenberg 23311103000 PATROL PA X 1-05 Flashing Sounder Combination 230V AC Yellow Lens 105 dB IP66

The Pfannenberg 23311103000 PATROL PA X 1-05 is a compact industrial combined audible and visual signalling device designed for reliable alarm notification in automation, manufacturing, safety, and process control environments. Combining a powerful 105 dB(A) electronic sounder with a 5 Joule xenon flashing beacon, this sounder-light combination provides effective warning signals where both acoustic and visual indication are required.

The PA X 1-05 features 80 stored alarm tones, external tone selection, a wide frequency range for improved acoustic penetration through doors and walls, and a rugged IP66 / NEMA 4/4X rated housing. The unit operates from 230V AC and uses a yellow lens with a flame red enclosure for high visibility industrial signalling applications.

Product Features

  • Manufacturer: Pfannenberg
  • Part Number: 23311103000
  • Series: PATROL PA X 1-05
  • Product Type: Flashing Sounder Combination
  • Rated Voltage: 230V AC
  • Sound Output: 105 dB(A) at 1 metre
  • Light Type: Xenon flashing beacon
  • Flash Energy: 5 Joules
  • Lens Colour: Yellow
  • Housing Colour: Flame Red
  • Alarm Tones: 80 stored tones
  • Protection Rating: IP66 / NEMA 4/4X
  • Impact Resistance: IK08
  • Mounting: Surface mounting
  • Operating Temperature: -40°C to +55°C
  • Warranty: 10 years

Applications

  • Industrial alarm systems
  • Factory automation equipment
  • Machine safety signalling
  • Emergency warning systems
  • Control panels and switchgear
  • Process monitoring installations
  • Manufacturing facilities
  • Building and plant notification systems

Why Choose the Pfannenberg 23311103000?

The Pfannenberg 23311103000 combines powerful audible signalling with high-visibility flashing indication in a single compact device. Its broad tone selection, rugged IP66 protection, impact-resistant housing, and reliable 230V AC operation make it an ideal solution for demanding industrial warning applications where dependable notification is critical.

Technical Specifications

Tick the specs you need, then view products that match.

Mounting Type Wall / surface
Coil / Supply Voltage 230 V AC
Light Function Xenon flash
Sound Output Level 105 dB(A)
Colour Yellow
Device Type Signal Tower / Beacon
Product Series Pfannenberg PATROL
IP Rating IP66
Specification Value Model PA X 1-05
Product Number 23311103000
Supply Voltage 230V AC
Operating Voltage Range 187-255V AC
Sound Level 105 dB(A)
Number of Tones 80
Light Source Xenon Flash Tube
Flash Energy 5 Joules
Visibility Distance Up to 164 metres
Dimensions 80.6 x 109.5 x 172.4 mm
Protection Rating IP66
NEMA Rating 4/4X
HS Code 85318070

Frequently Asked Questions

What voltage does the Pfannenberg 23311103000 require?

The Pfannenberg 23311103000 operates on a 230V AC supply with an operating range of approximately 187-255V AC.

How loud is the Pfannenberg 23311103000 sounder?

The integrated sounder produces up to 105 dB(A) at a distance of 1 metre.

How many alarm tones are available?

The PA X 1-05 stores 80 selectable alarm tones and supports external tone selection.

Is the Pfannenberg 23311103000 suitable for outdoor use?

Yes. The device features IP66 protection and NEMA 4/4X enclosure protection for use in demanding industrial environments.
