Pfannenberg PATROL series PA X 1-05 24 DC CL EN54 PA X 1-05 24 DC CL 9003

Pfannenberg PATROL series PA X 1-05 24 DC CL EN54 PA X 1-05 24 DC CL 9003

Pfannenberg 23311801175 PATROL PA X 1-05 is a 24 V DC combined audible and visual signalling device with a clear 5 J xenon beacon, powerful programmable sounder, IP66 protection and RAL 9003 housing for fire safety and industrial warning applications.

SKU: 23311801175MPN: 23311801175
Price on application Contact us for pricing and availability.
Call 01708 343600

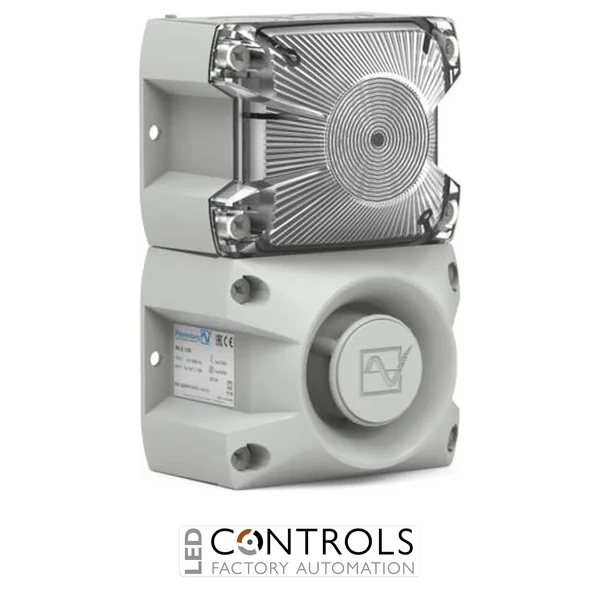

Pfannenberg 23311801175 PATROL PA X 1-05 Flashing Sounder Combination 24V DC Clear Lens EN54

The Pfannenberg 23311801175 PATROL PA X 1-05 is a high-performance combined audible and visual signalling device designed for reliable warning and alarm applications in industrial, commercial, and safety-critical environments. This compact unit combines a powerful electronic sounder with a xenon flashing beacon to provide clear acoustic and visual notification from a single rugged enclosure.

Operating from a 24V DC supply, the Pfannenberg 23311801175 provides up to 104 dB(A) sound output, a 5 Joule xenon flash beacon, and 80 selectable alarm tones. The clear lens design improves visual signalling coverage, while the durable enclosure provides IP66, NEMA 4/4X, and IK08 protection for demanding industrial installations.

Product Features

  • Manufacturer: Pfannenberg
  • Part Number: 23311801175
  • Series: PATROL PA X 1-05
  • Product Type: Flashing Sounder Combination
  • Operating Voltage: 24V DC
  • Operating Range: 18-30V DC
  • Sound Output: 104 dB(A) @ DIN tone
  • Light Technology: Xenon flash tube
  • Flash Energy: 5 Joules
  • Flash Frequency: 1 Hz (60 flashes/min)
  • Lens Colour: Clear
  • Housing Colour: RAL 9003 White
  • Alarm Tones: 80 selectable tones
  • External Tone Selection: 4 tones
  • Approvals: EN54
  • Protection Rating: IP66 / NEMA 4/4X
  • Impact Protection: IK08
  • Operating Temperature: -40°C to +55°C

Applications

  • Fire and safety alarm systems
  • Industrial automation equipment
  • Machine safety warning systems
  • Control panels and switchgear
  • Process control installations
  • Emergency notification systems
  • Manufacturing facilities
  • Industrial plant signalling

Why Choose the Pfannenberg 23311801175?

The Pfannenberg 23311801175 provides dependable audible and visual signalling in a compact, robust design. With EN54 compatibility, flexible alarm tone selection, powerful xenon flashing technology, and high environmental protection, it is suitable for applications requiring reliable and highly visible alarm indication.

Technical Specifications

Tick the specs you need, then view products that match.

Sound Output Level 104 dB(A)
Coil / Supply Voltage 24 V DC
Light Function Xenon flash
Colour Clear
Product Series Pfannenberg PATROL
Device Type Signal Tower / Beacon
Specification Value Model PA X 1-05
Article Number 23311801175
Rated Voltage 24V DC
Operating Voltage Range 18-30V DC
Sound Pressure Level 104 dB(A)
Alarm Tones 80
Externally Selectable Tones 4
Light Source Xenon flashing tube
Flash Energy 5 Joules
Flash Rate 1 Hz
Maximum Viewing Distance 164 m
Dimensions 109.5 x 172.4 x 80.6 mm
Housing Material Polycarbonate / ABS blend
Protection Rating IP66
NEMA Rating 4 / 4X
HS Code 85318070
IP Rating IP66

Frequently Asked Questions

What voltage does the Pfannenberg 23311801175 operate on?

The Pfannenberg 23311801175 operates from an 18-30V DC supply and is commonly used in 24V DC systems.

How loud is the Pfannenberg 23311801175 sounder?

The integrated electronic sounder provides up to 104 dB(A) sound output using the DIN tone setting.

How many alarm tones are available?

The PATROL PA X 1-05 provides 80 selectable alarm tones with 4 externally selectable tone stages.

Is the Pfannenberg 23311801175 suitable for outdoor use?

Yes. The IP66, NEMA 4/4X, and IK08 rated enclosure allows reliable operation in demanding indoor and outdoor environments.
