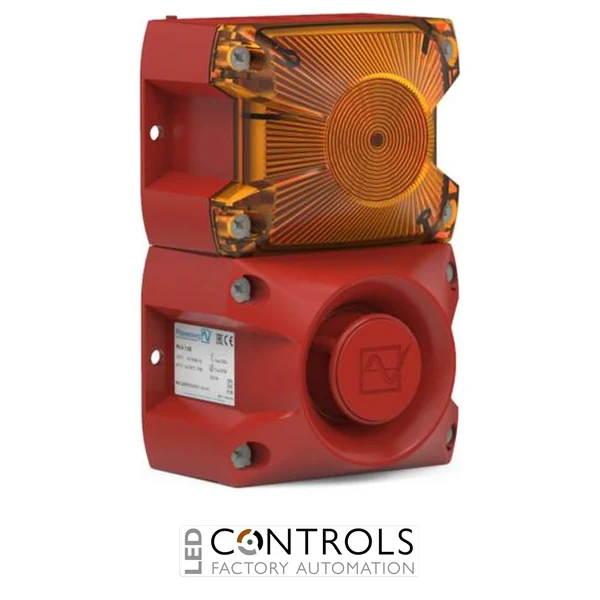

Pfannenberg PATROL series PA X 1-05 24DC AM M12 7035PA X 1-05 24 DC AM M12 7035

Pfannenberg PATROL series PA X 1-05 24DC AM M12 7035PA X 1-05 24 DC AM M12 7035

Pfannenberg 23311804101 PATROL PA X 1-05 is a 24 V DC combined audible and visual signalling device with an amber 5 J xenon beacon, electronic sounder, M12 connection and RAL 7035 grey housing for industrial warning and automation applications.

SKU: 23311804101MPN: 23311804101
Price on application Contact us for pricing and availability.
Call 01708 343600

Pfannenberg 23311804101 PATROL PA X 1-05 Flashing Sounder Combination 24V DC Amber Lens M12 Connector Grey Housing

The Pfannenberg 23311804101 PATROL PA X 1-05 is a compact industrial combined audible and visual signalling device designed for reliable alarm and warning applications in automation, machinery safety, process control, and industrial environments. This version features an integrated M12 connection for simplified installation and maintenance, providing a reliable connection solution for modern industrial systems.

Operating from a 24V DC supply, the Pfannenberg 23311804101 combines a high-output electronic sounder with a xenon flashing beacon, delivering powerful audible and visual warning signals from a single compact unit. The PATROL PA X 1-05 series provides excellent acoustic penetration through obstacles such as doors and walls, making it suitable for demanding industrial applications.

Product Features

  • Manufacturer: Pfannenberg
  • Part Number: 23311804101
  • Series: PATROL PA X 1-05
  • Product Type: Flashing Sounder Combination
  • Operating Voltage: 24V DC
  • Operating Range: 18-30V DC
  • Sound Output: Up to 105 dB(A)
  • Light Technology: Xenon flashing beacon
  • Flash Energy: 5 Joules
  • Flash Frequency: 1 Hz
  • Lens Colour: Amber
  • Housing Colour: Grey RAL 7035
  • Connection: M12 connector
  • Alarm Tones: 80 selectable tones
  • Alarm Stages: 4
  • Protection Rating: IP66 / NEMA 4/4X
  • Impact Protection: IK08
  • Operating Temperature: -40°C to +55°C

Applications

  • Industrial automation systems
  • Machine safety signalling
  • Factory alarm systems
  • Control panels and switchgear
  • Process monitoring systems
  • Emergency warning installations
  • Manufacturing equipment
  • Industrial plant signalling

Why Choose the Pfannenberg 23311804101?

The Pfannenberg 23311804101 PATROL PA X 1-05 provides a dependable combined audible and visual warning solution with flexible installation options. The integrated M12 connection simplifies wiring, while the powerful sounder, xenon flashing beacon, selectable tones, and rugged IP66 enclosure provide reliable signalling performance in demanding industrial environments.

Technical Specifications

Tick the specs you need, then view products that match.

Sound Output Level 105 dB(A)
Coil / Supply Voltage 24 V DC
Light Function Xenon flash
Colour Amber
Device Type Signal Tower / Beacon
Product Series Pfannenberg PATROL
IP Rating IP66
Specification Value Model PA X 1-05
Article Number 23311804101
Rated Voltage 24V DC
Operating Voltage Range 18-30V DC
Sound Pressure Level 105 dB(A)
Alarm Tone Selection 80 tones
Alarm Stages 4
Light Source Xenon flash tube
Flash Energy 5 Joules
Flash Frequency 1 Hz
Connection Type M12
Dimensions Approx. 110 x 186 x 81 mm
Housing Material Polycarbonate / ABS blend
Protection Rating IP66
NEMA Rating 4 / 4X

Frequently Asked Questions

What voltage does the Pfannenberg 23311804101 operate on?

The Pfannenberg 23311804101 operates from an 18-30V DC supply and is commonly used in 24V DC industrial systems.

How loud is the Pfannenberg 23311804101 sounder?

The integrated electronic sounder provides up to 105 dB(A) sound output.

How many alarm tones are available?

The PATROL PA X 1-05 provides 80 selectable alarm tones with four alarm stages.

Is the Pfannenberg 23311804101 suitable for outdoor use?

Yes. The IP66 and NEMA 4/4X rated enclosure allows reliable operation in demanding indoor and outdoor industrial environments.
