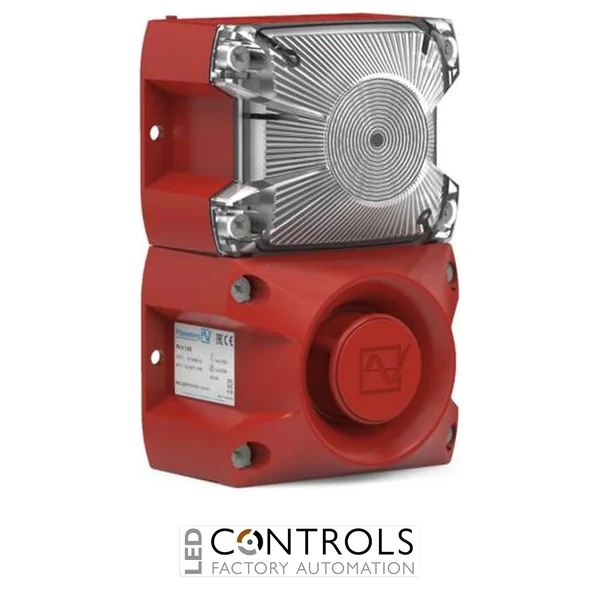

Pfannenberg PATROL series PA X 1-05-SSM 24DC KL EN54PA X 1-05-SSM 24 DC CL

Pfannenberg PATROL series PA X 1-05-SSM 24DC KL EN54PA X 1-05-SSM 24 DC CL

Pfannenberg 23311801005 PATROL PA X 1-05-SSM is a 24 V DC IP66 combined audible and visual alarm device with a 105 dB sounder, clear 5 J xenon beacon, 80 alarm tones and EN 54-3 and EN 54-23 certification.

SKU: 23311801005MPN: 23311801005
Price on application Contact us for pricing and availability.
Call 01708 343600

Pfannenberg 23311801005 PATROL PA X 1-05 Flashing Sounder Combination 24V DC Grey Housing Red Lens

The Pfannenberg 23311801005 PATROL PA X 1-05 is a compact industrial combined audible and visual signalling device designed for dependable alarm notification in automation, machinery safety, process control, and industrial warning applications. The unit combines a powerful electronic sounder with a xenon flashing beacon to provide clear acoustic and visual indication from a single rugged enclosure.

Operating from a 24V DC supply, the Pfannenberg 23311801005 provides up to 105 dB(A) sound output, a 5 Joule xenon flashing beacon, and 80 selectable alarm tones. The grey housing with red lens provides excellent visibility, while the robust IP66 / NEMA 4/4X and IK08 rated enclosure ensures reliable operation in demanding industrial environments.

Product Features

  • Manufacturer: Pfannenberg
  • Part Number: 23311801005
  • Series: PATROL PA X 1-05
  • Product Type: Flashing Sounder Combination
  • Operating Voltage: 24V DC
  • Operating Range: 18-30V DC
  • Sound Output: 105 dB(A)
  • Light Technology: Xenon flash tube
  • Flash Energy: 5 Joules
  • Flash Frequency: 1 Hz (60 flashes/min)
  • Lens Colour: Red
  • Housing Colour: Grey RAL 7035
  • Alarm Tones: 80 selectable tones
  • External Tone Selection: 4 tones
  • Protection Rating: IP66 / NEMA 4/4X
  • Impact Protection: IK08
  • Mounting: Surface mounting
  • Operating Temperature: -40°C to +55°C

Applications

  • Industrial alarm systems
  • Factory automation equipment
  • Machine safety warning systems
  • Control panels and switchgear
  • Emergency notification systems
  • Process control installations
  • Manufacturing facilities
  • Plant signalling applications

Why Choose the Pfannenberg 23311801005?

The Pfannenberg 23311801005 PATROL PA X 1-05 combines high-performance audible signalling with a powerful xenon visual warning beacon in a compact and durable design. With flexible alarm tone selection, excellent sound penetration, long service life, and IP66 environmental protection, it is an effective solution for critical industrial notification systems.

Technical Specifications

Tick the specs you need, then view products that match.

Mounting Type Wall / surface
Coil / Supply Voltage 24 V DC
Light Function Xenon flash
Sound Output Level 104 dB(A)
Colour Red
Product Series Pfannenberg PATROL
Device Type Signal Tower / Beacon
Specification Value Model PA X 1-05
Article Number 23311801005
Rated Voltage 24V DC
Operating Voltage Range 18-30V DC
Sound Pressure Level 104 dB(A) @ DIN tone
Alarm Tones 80
Externally Selectable Tones 4
Light Source Xenon flash tube
Flash Energy 5 Joules
Flash Frequency 1 Hz
Maximum Viewing Distance 164 m
Dimensions 109.5 x 172.4 x 80.6 mm
Housing Material Polycarbonate / ABS blend
Protection Rating IP66
NEMA Rating 4 / 4X
HS Code 85318070
IP Rating IP66

Frequently Asked Questions

What voltage does the Pfannenberg 23311801005 operate on?

The Pfannenberg 23311801005 operates from an 18-30V DC supply and is commonly used in 24V DC industrial systems.

How loud is the Pfannenberg 23311801005 sounder?

The integrated sounder provides up to 104 dB(A) sound pressure output using the DIN tone setting.

How many alarm tones are available?

The PATROL PA X 1-05 provides 80 selectable alarm tones with 4 externally selectable tones.

Is the Pfannenberg 23311801005 suitable for outdoor use?

Yes. The IP66 and NEMA 4/4X rated enclosure allows reliable operation in demanding indoor and outdoor industrial environments.
