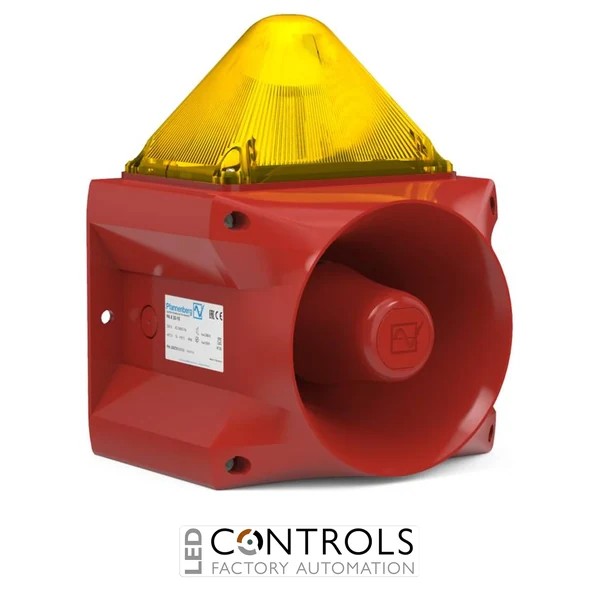

Pfannenberg PATROL series PA X 10-10 230 AC GEPA X 10-10 230 AC YE

Pfannenberg PATROL series PA X 10-10 230 AC GEPA X 10-10 230 AC YE

Pfannenberg PA X 10-10 230 AC YE PATROL flashing sounder with 10 J xenon flash, 117 dB(A) output and IP66 protection for industrial warning applications.

SKU: 23361103000MPN: 23361103000
Price on application Contact us for pricing and availability.
Call 01708 343600

Pfannenberg 23361103000 PA X 10-10 PATROL Series Flashing Sounder Beacon Combination

The Pfannenberg 23361103000 is a PA X 10-10 PATROL Series combined flashing sounder beacon designed for industrial alarm, warning, and safety applications. This powerful signaling device combines a high-output electronic sounder with a xenon flashing beacon to provide reliable audible and visual indication in demanding industrial environments. The unit features a red housing with yellow lens, operates from 230 V AC, and provides high visibility for large industrial areas.

The PA X 10-10 delivers a maximum sound output of 117 dB(A) and uses a 10 Joule xenon flash beacon for highly effective visual warning. The sounder and flashing light functions can operate independently, while 80 stored alarm tones and four externally selectable tones provide flexible signaling options for different applications and countries.

Key Features

  • Manufacturer: Pfannenberg
  • Model / SKU: 23361103000
  • Series: PATROL PA X 10-10
  • Combined electronic sounder and xenon flashing beacon
  • Operating voltage: 230 V AC
  • Red housing with yellow lens
  • Maximum sound output: 117 dB(A)
  • 10 Joule xenon flash energy
  • 80 stored alarm tones
  • 4 externally selectable alarm tones
  • Independent operation of sounder and flashing light
  • 1 Hz flashing frequency
  • IP66 ingress protection
  • NEMA Type 4/4X protection
  • IK08 impact-resistant housing
  • Suitable for harsh industrial environments

Applications

The Pfannenberg 23361103000 PA X 10-10 is suitable for industrial automation systems, machinery safety alarms, manufacturing plants, process control environments, emergency warning systems, production facilities, and large industrial areas requiring powerful audible and visual signaling.

Why Choose Pfannenberg 23361103000?

The PA X 10-10 combines a powerful 117 dB(A) sounder with a high-energy xenon flashing beacon in a rugged industrial enclosure. Its broad acoustic frequency range, large signaling coverage, flexible tone selection, and IP66 protection make it an effective solution for demanding industrial warning applications.

Technical Specifications

Tick the specs you need, then view products that match.

Sound Output Level 117 dB(A)
Coil / Supply Voltage 230 V AC
Light Function Xenon flash
Product Series Pfannenberg PATROL
Device Type Signal Tower / Beacon
Product Type Flashing sounder beacon combination
Manufacturer Part Number 23361103000
Model PA X 10-10
Operating Voltage 230 V AC
Operating Range 187–255 V AC
Frequency 50 / 60 Hz
Light Source Xenon flashing beacon
Lens Colour Yellow
Flash Energy 10 Joules
Flash Rate 1 Hz
Sound Output 117 dB(A) maximum
Alarm Tones 80 stored tones
Housing Colour Red (RAL 3000)
Housing Material PC / ABS blend
Protection Rating IP66 / NEMA Type 4/4X
Impact Protection IK08
Operating Temperature -40 °C to +55 °C
Dimensions 270 x 214 x 156 mm
HS Code 85318070
IP Rating IP66
Colour Yellow

Frequently Asked Questions

What is the Pfannenberg 23361103000?

The Pfannenberg 23361103000 is a PA X 10-10 PATROL Series combined flashing sounder beacon used for industrial audible and visual alarm applications.

What voltage does the Pfannenberg 23361103000 use?

The unit operates using a 230 V AC power supply.

How loud is the Pfannenberg PA X 10-10?

The PA X 10-10 provides a maximum sound pressure level of 117 dB(A).

What type of flashing light does the Pfannenberg 23361103000 use?

The device uses a xenon flashing beacon with 10 Joule flash energy and a yellow lens.
