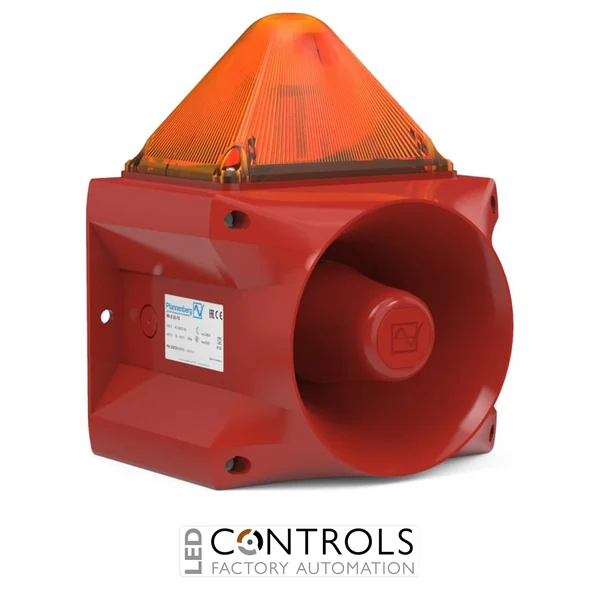

Pfannenberg 23361104000 PA X 10-10 Flashing Sounder Beacon
The Pfannenberg 23361104000 PA X 10-10 is a compact combined
audible and visual signaling device designed for industrial alarm and warning
applications. Featuring a powerful electronic sounder and amber xenon flashing
light, this signaling beacon provides reliable alerts in demanding industrial
environments.
Part of Pfannenberg’s Patrol PA X series, the 23361104000 model delivers a
high acoustic output of up to 110 dB at 1 metre, includes 80 selectable alarm
tones, and provides a 10J flash energy for enhanced visual indication.
The sounder and flashing light functions can operate independently, allowing
flexible integration into industrial safety and automation systems.
Key Features
- Manufacturer: Pfannenberg
- Model Number: 23361104000
- Series: PA X 10-10 Patrol
- Combined electronic sounder and flashing beacon
- Amber xenon flashing lens with red housing
- Sound output: 110 dB at 1 metre
- 80 selectable alarm tones
- Flash energy: 10J
- Supply voltage: 230V AC
- Protection rating: IP66 / NEMA 4 and NEMA 4X
- Operating temperature range: -40°C to +55°C
- Base mounting design for industrial installation
Applications
The Pfannenberg 23361104000 PA X 10-10 flashing sounder beacon is suitable
for use in manufacturing plants, machinery safety systems, process control
environments, industrial automation, emergency warning systems, and areas
requiring clear audible and visual alarm indication.
Why Choose Pfannenberg 23361104000?
Pfannenberg’s PA X 10-10 series combines strong acoustic performance with
highly visible flashing indication in a rugged industrial enclosure. The wide
tone selection, independent sound and light operation, and durable construction
make this beacon a dependable choice for industrial safety and signaling
applications.
