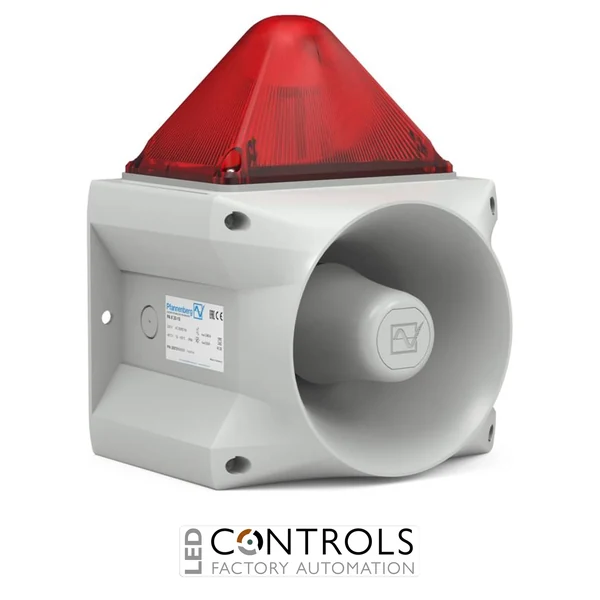

Pfannenberg 23351105055 PATROL PA X 5-05 Flashing Sounder Beacon 230V AC Red Xenon
The Pfannenberg 23351105055 PATROL PA X 5-05 is a combined
audible and visual signalling device designed for reliable alarm indication
in industrial environments. This compact flashing sounder beacon combines a
powerful electronic sounder with a red xenon flashing light, providing clear
warning signals for machinery, automation, process control, and safety
applications.
The PATROL PA X 5-05 series provides excellent acoustic penetration through
obstacles such as doors and walls due to its broad frequency range and strong
low-frequency output. The 23351105055 model features a grey
housing with red lens, 230V AC operation, 80 selectable alarm tones, four tone
stages, and IP66 protection for demanding industrial installations.
Key Features
- Manufacturer: Pfannenberg
- Product Series: PATROL PA X 5-05
- Part Number: 23351105055
- Combined electronic sounder and xenon flashing beacon
- 230V AC operating voltage
- Red xenon flashing lens
- Grey housing colour (RAL 7035)
- 5 Joule xenon flash energy
- 107 dB(A) maximum sound output
- 80 selectable alarm tones
- 4 selectable tone stages
- Independent audible and visual signalling functions
- IP66 / NEMA 4/4X protection rating
- IK08 impact-resistant housing
Applications
The Pfannenberg 23351105055 PATROL PA X 5-05 is suitable for applications
requiring dependable audible and visual alarm notification, including:
- Industrial machinery safety systems
- Factory automation equipment
- Electrical control panels
- Manufacturing production lines
- Process control systems
- Emergency warning installations
- Safety and evacuation signalling
- Industrial alarm systems
Why Choose Pfannenberg 23351105055?
The Pfannenberg PATROL PA X 5-05 provides an effective combined signalling
solution by integrating a high-performance electronic sounder with a
high-visibility xenon flashing beacon. Its powerful acoustic performance,
extensive tone selection, rugged industrial enclosure, and IP66 protection
make it suitable for demanding warning and safety applications.
