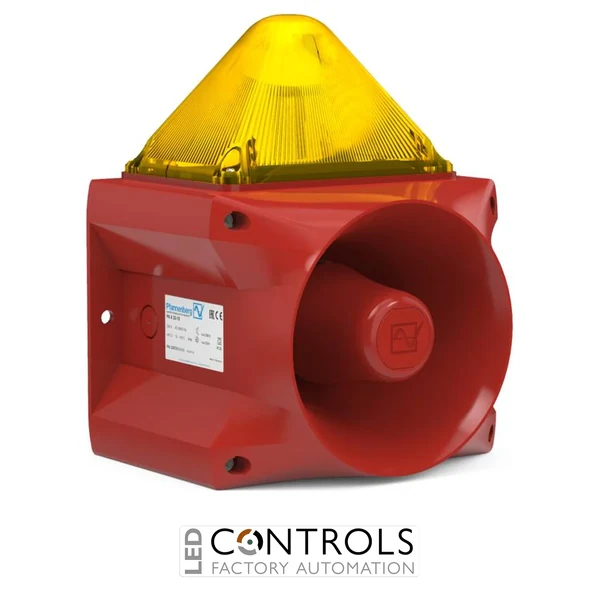

Pfannenberg 23351803000 PATROL PA X 5-05 Flashing Sounder Beacon 24V DC Yellow Xenon
The Pfannenberg 23351803000 PATROL PA X 5-05 is a combined
audible and visual signalling device designed for reliable industrial alarm
indication. This compact flashing sounder beacon combines a powerful
electronic sounder with a yellow xenon flashing light, providing clear warning
signals for machinery, automation, process control, and safety applications.
The PATROL PA X 5-05 features excellent acoustic penetration through
obstacles such as doors and walls, allowing effective alarm coverage in large
industrial areas. The sounder and flashing light sections can operate
independently, with 80 stored alarm tones, four tone stages, a 5 Joule xenon
flash, and robust IP66 / NEMA 4/4X protection.
Key Features
- Manufacturer: Pfannenberg
- Product Series: PATROL PA X 5-05
- Part Number: 23351803000
- Combined electronic sounder and xenon flashing beacon
- 24V DC operating voltage
- Yellow xenon flashing lens
- Red housing colour
- 5 Joule xenon flash energy
- 107 dB(A) nominal sound output
- 80 selectable alarm tones
- 4 selectable tone stages
- Independent sounder and beacon operation
- IP66 / NEMA 4/4X protection rating
- IK08 impact-resistant housing
- Suitable for surface and panel mounting
Applications
The Pfannenberg 23351803000 PATROL PA X 5-05 is suitable for applications
requiring dependable combined audible and visual warning indication,
including:
- Industrial machinery safety systems
- Factory automation equipment
- Electrical control panels
- Manufacturing production lines
- Process control systems
- Emergency warning installations
- Safety and evacuation signalling
- Industrial alarm systems
Why Choose Pfannenberg 23351803000?
The Pfannenberg PATROL PA X 5-05 provides an efficient combined signalling
solution by integrating a high-performance electronic sounder with a highly
visible xenon flashing beacon. Its strong acoustic penetration, extensive
tone selection, rugged enclosure, and environmental protection make it ideal
for demanding industrial warning and safety applications.
