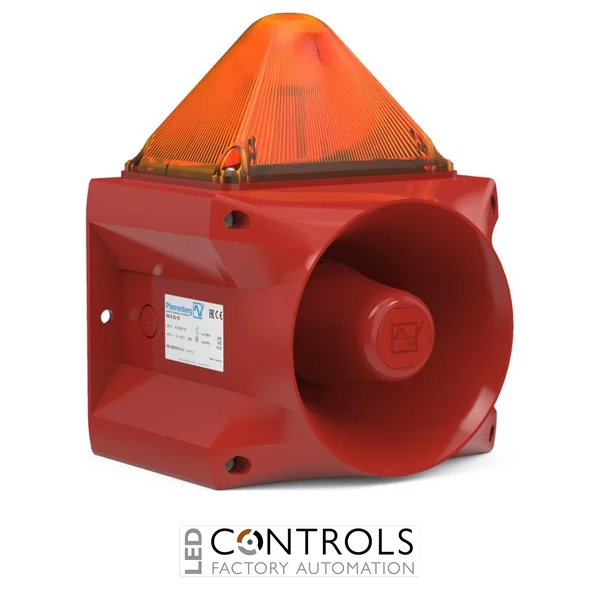

Pfannenberg 23351804000 PATROL PA X 5-05 Flashing Sounder Beacon 24V DC Amber Xenon
The Pfannenberg 23351804000 PATROL PA X 5-05 is a combined
audible and visual signalling device designed for reliable alarm indication
in industrial environments. This flashing sounder beacon combines a powerful
electronic sounder with an amber xenon flashing light, providing clear warning
signals for machinery, automation, process control, and safety applications.
The PATROL PA X 5-05 series delivers excellent acoustic penetration through
obstacles such as doors and walls while providing high-visibility flashing
indication. The 23351804000 model operates on 24V DC and
features a 5 Joule xenon flash, 80 selectable alarm tones, four tone stages,
and IP66 protection for demanding industrial installations.
Key Features
- Manufacturer: Pfannenberg
- Product Series: PATROL PA X 5-05
- Part Number: 23351804000
- Combined electronic sounder and xenon flashing beacon
- 24V DC operating voltage
- Amber xenon flashing lens
- Red housing colour
- 5 Joule xenon flash energy
- Up to 107 dB(A) sound output
- 80 selectable alarm tones
- 4 selectable tone stages
- Independent sounder and beacon operation
- IP66 / NEMA 4/4X protection rating
- IK08 impact-resistant housing
- Suitable for surface and flush-panel mounting
Applications
The Pfannenberg 23351804000 PATROL PA X 5-05 is suitable for applications
requiring dependable combined audible and visual alarm notification,
including:
- Industrial machinery safety systems
- Factory automation equipment
- Electrical control panels
- Manufacturing production lines
- Process control systems
- Emergency warning installations
- Safety and evacuation signalling
- Industrial alarm systems
Why Choose Pfannenberg 23351804000?
The Pfannenberg PATROL PA X 5-05 provides an efficient combined signalling
solution by integrating a powerful electronic sounder with a highly visible
xenon flashing beacon. Its strong acoustic performance, extensive tone
selection, rugged enclosure, and IP66 protection make it suitable for
demanding industrial warning and safety applications.
