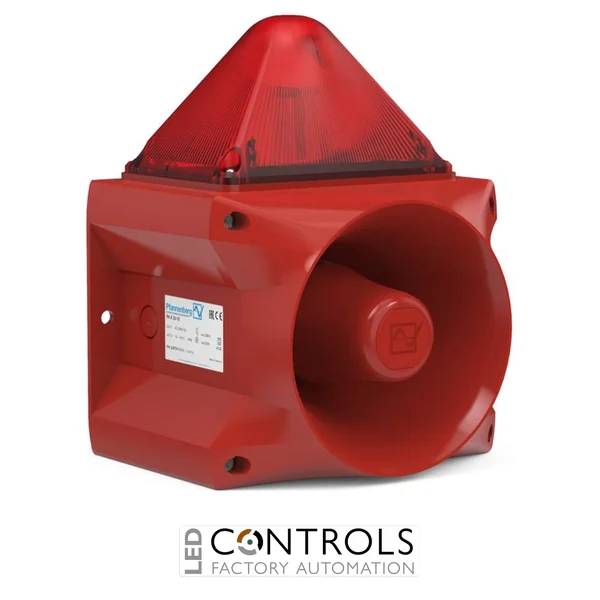

Pfannenberg 23351805000 PA X 5-05 Sounder Beacon Combination
The Pfannenberg 23351805000 PA X 5-05 is a compact audible and visual
signaling device designed for industrial warning and alarm applications. Combining a
powerful electronic sounder with a xenon flashing beacon, this PATROL Series unit provides
reliable notification in demanding industrial environments. It features a red housing,
red lens, 24 V DC operation, high acoustic output, and a 5 Joule flash energy beacon for
effective signaling over large areas.
Designed for applications requiring dependable alarm indication, the PA X 5-05 delivers
up to 107 dB(A) sound output, offers multiple selectable alarm tones,
and incorporates robust IP66 / UL Type 4X protection. Its durable polycarbonate/ABS
housing makes it suitable for industrial machinery, process automation, safety systems,
and harsh environmental installations.
Key Features
- Manufacturer: Pfannenberg
- Model / SKU: 23351805000
- Series: PATROL PA X 5-05
- Combined sounder and flashing beacon unit
- Operating voltage: 24 V DC (18–30 V DC range)
- Sound output: up to 107 dB(A) at 1 metre
- Flash energy: 5 Joules xenon strobe
- Flash rate: 1 Hz (60 flashes per minute)
- Red housing with red lens
- 80 selectable alarm tones with multi-stage alarm functionality
- Ingress protection: IP66
- UL Type 4/4X enclosure protection
Applications
The Pfannenberg 23351805000 PA X 5-05 is commonly used for machine alarms, industrial
automation systems, production lines, safety notifications, process control environments,
and emergency warning installations where both audible and visual indication are required.
Why Choose Pfannenberg 23351805000?
The PA X 5-05 provides a dependable combination of high-volume acoustic warning and
high-visibility flashing indication in one compact enclosure. With rugged protection,
flexible alarm tone selection, and industrial-grade construction, it is designed to
deliver reliable signaling performance in challenging operating conditions.
