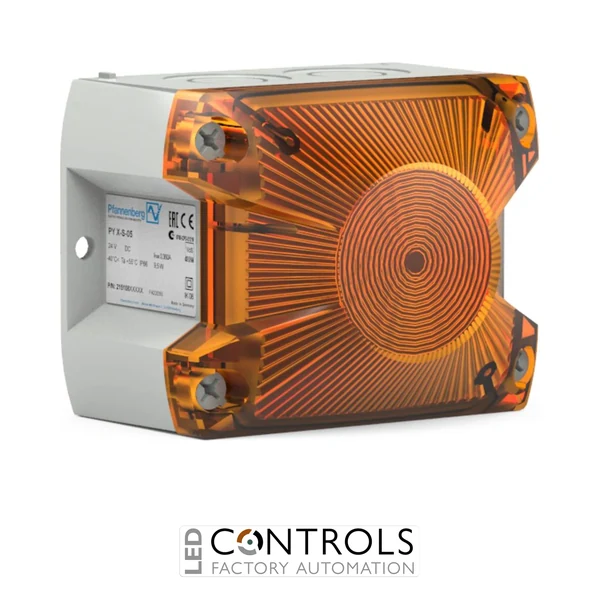

Pfannenberg 21513814055 PY L-S Amber LED Compact Multifunctional Signal Light
The Pfannenberg 21513814055 PY L-S Compact LED Signal Light
is a versatile industrial LED visual signalling device designed for machine
status indication, automation systems, and warning applications. Featuring an
amber lens, grey housing, and 10-60V DC multi-voltage operation, this compact
LED beacon provides selectable continuous, blinking, and flashing modes for
flexible industrial signalling requirements.
The PY L-S series combines high-output LED technology with a rugged
polycarbonate/ABS construction, IP66 protection, NEMA Type 4/4X rating, and
IK08 impact resistance. Its compact design supports flexible installation
using external brackets or internal mounting holes, making it suitable for
demanding industrial environments.
Product Features
- Manufacturer: Pfannenberg
- Part Number: 21513814055
- Series: PY L-S
- Product Type: Compact multifunctional LED signal light
- Light Technology: High-output LED
- Lens Colour: Amber
- Housing Colour: Grey (RAL 7035)
- Supply Voltage: 12V / 24V / 48V DC
- Operating Voltage Range: 10-60V DC
- Selectable modes: Continuous, blinking, flashing
- Selectable flash frequencies: 0.1 / 0.5 / 0.75 / 1 / 2 Hz
- Blinking frequencies: 1 Hz and 2 Hz
- Light intensity: 76 cd (reducible)
- Maximum viewing distance: 202 m
- Protection Rating: IP66
- NEMA Rating: Type 4/4X
- Impact Protection: IK08
- LED service life: More than 50,000 hours
- Operating Temperature: -40°C to +55°C
Applications
The Pfannenberg 21513814055 LED signal light is suitable for:
- Industrial automation systems
- Machine status indication
- Control panels and electrical enclosures
- Production line signalling
- Factory warning systems
- Process automation equipment
- Industrial equipment monitoring
- Safety indication systems
Why Choose Pfannenberg 21513814055?
The Pfannenberg PY L-S delivers dependable industrial signalling with
energy-efficient LED technology, flexible operating modes, and rugged
construction. Its multi-voltage DC input, high visibility, IP66 protection,
IK08 impact resistance, and long LED lifetime make it an excellent solution
for modern automation and machine safety applications.
