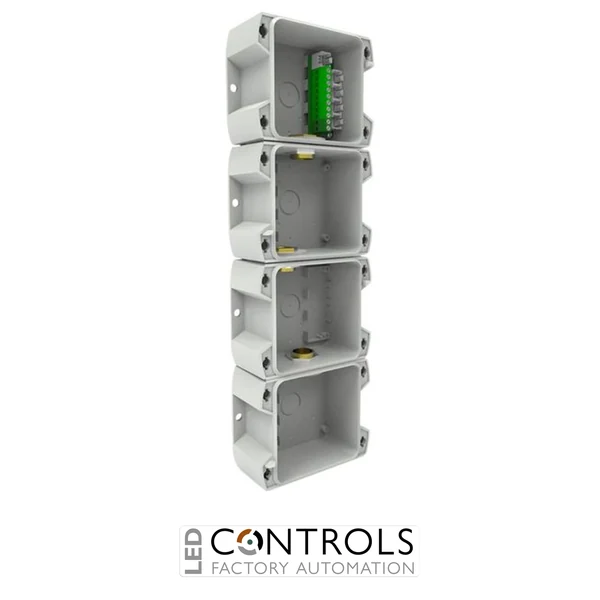

Pfannenberg 21514004055 PYRA Series 4-Stage LED Signal Tower Base Unit
Product Overview
The Pfannenberg 21514004055 is a PYRA® series pre-assembled 4-stage LED signal tower base unit designed for industrial visual signaling applications.
This compact LED traffic light housing provides a flexible platform for combining LED light modules and optional sounder modules to create customized machine status indication solutions.
The unit features a robust light gray housing, base mounting design, and protection ratings suitable for demanding industrial environments.
The PYRA 21514004055 includes a four-tier pre-assembled base housing that allows users to configure signaling requirements with compatible LED inserts.
Its impact-resistant polycarbonate construction and IP66 / NEMA 4X protection make it suitable for factory automation, machinery, process equipment, and industrial safety applications.
Key Features
Manufacturer: Pfannenberg
Part Number: 21514004055
Series: PYRA
Product Type: Pre-assembled LED signal tower base unit
Configuration: 4-stage housing
Mounting Type: Base mount
Housing Color: Light gray (RAL 7035)
Housing Material: Impact-resistant polycarbonate
LED signal tower compatible platform
Protection Rating: IP66
NEMA Rating: 4X
Suitable for industrial automation and machine signaling
Applications
Industrial automation equipment
Machine status indication
Production line signaling
Factory safety systems
Control panels and process equipment
Material handling systems
Why Choose Pfannenberg 21514004055?
The Pfannenberg PYRA 4-stage signal tower base provides a reliable and adaptable foundation for industrial signaling systems.
Its modular design enables easy configuration with LED modules and sounders, reducing installation complexity while delivering clear visual status indication in demanding environments.
Technical Specifications
Tick the specs you need, then view products that match.
Mounting Type
Wall / surface
Light Function
Steady
Illumination
Illuminated
Device Type
Signal Tower / Beacon
Product Series
Pfannenberg PYRA
Specification Value Brand
Pfannenberg
Model
21514004055
Series
PYRA
Signal Type
Visual LED signaling
Number of Stages
4
Body Length
345 mm
Base Diameter
109.5 mm
Operating Temperature
-40°C to +55°C
Protection Rating
IP66
NEMA Rating
NEMA 4/4X
Supply Voltage
Determined by installed LED modules
Compliance
CE, UL, RoHS, REACH
HS Code
85318070
IP Rating
IP66
Frequently Asked Questions
What is the Pfannenberg 21514004055?
The Pfannenberg 21514004055 is a PYRA series pre-assembled four-stage LED signal tower base unit used for industrial visual signaling applications.
How many stages does the Pfannenberg 21514004055 support?
The 21514004055 model is configured as a four-stage signal tower base housing.
What protection rating does this signal tower have?
The unit provides IP66 protection and NEMA 4/4X environmental protection for industrial applications.
Can LED modules and sounders be added?
Yes. The PYRA platform allows compatible LED modules and sounder modules to be combined according to application requirements.
Mounting Type
Wall / surface
Light Function
Steady
Illumination
Illuminated
Device Type
Signal Tower / Beacon
Product Series
Pfannenberg PYRA
Specification Value Brand
Pfannenberg
Model
21514004055
Series
PYRA
Signal Type
Visual LED signaling
Number of Stages
4
Body Length
345 mm
Base Diameter
109.5 mm
Operating Temperature
-40°C to +55°C
Protection Rating
IP66
NEMA Rating
NEMA 4/4X
Supply Voltage
Determined by installed LED modules
Compliance
CE, UL, RoHS, REACH
HS Code
85318070
IP Rating
IP66
