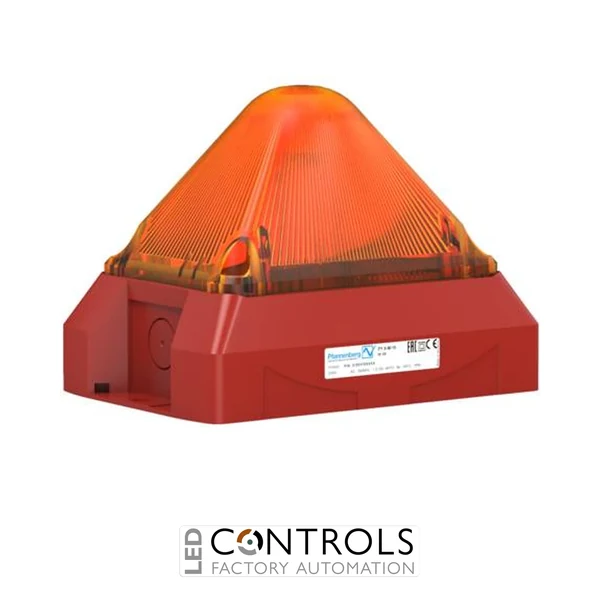

Pfannenberg PYRA series PY X-M-05 10-57V DC AM RAL3000PY X-M-05 10-57V DC AM RAL3000
Pfannenberg PY X-M-05 10-57V DC AM RAL3000 PYRA xenon flashing signal light designed for reliable amber visual warning and industrial signalling applications.
SKU:21550814000MPN:21550814000
Price on applicationContact us for pricing and availability.
Pfannenberg 21550814000 PY X-M-05 Xenon Flashing Light 10-60V DC Yellow Lens Red Housing
The Pfannenberg 21550814000 PY X-M-05 is a high-performance
PYRA® series xenon flashing light designed for industrial warning,
automation, and safety signaling applications. Featuring a yellow lens,
red RAL 3000 housing, and a wide-range 10-60V DC power supply, this robust
flashing beacon delivers a powerful 5 Joule xenon flash output for reliable
visual indication in demanding industrial environments.
Designed for flexible industrial installation, the PY X-M-05 provides
adjustable flash rates, automatic synchronization of multiple connected
units, surface or panel mounting options, and rugged IP66 protection.
Its impact-resistant polycarbonate/ABS housing ensures dependable operation
in harsh indoor and outdoor environments.
Product Features
Manufacturer: Pfannenberg
Part Number: 21550814000
Series: PYRA PY X-M-05
High-intensity xenon flashing technology
5 Joule flash energy output
Yellow lens with red RAL 3000 housing
Wide voltage range: 10-57V DC / 18-30V AC
Adjustable flash rate via DIP switch
Selectable flash frequencies: 0.1, 0.5, 0.75 and 1 Hz
Automatic synchronization of multiple flashing lights
Surface and flush-panel mounting capability
IP66 protection rating
UL Type 4/4X protection
IK08 impact-resistant housing
Polycarbonate/ABS blend enclosure
Applications
The Pfannenberg 21550814000 PY X-M-05 is suitable for industrial automation,
machinery safety systems, manufacturing equipment, process plants, control
cabinets, warehouses, and general warning installations requiring a highly
visible yellow flashing signal.
Benefits
Powerful xenon flash technology for long-distance visibility
Reliable signaling performance in demanding environments
Wide voltage range for flexible system integration
Synchronization capability for coordinated warning systems
IP66 protection against dust and water ingress
Long operating life with consistent flash performance
Technical Specifications
Tick the specs you need, then view products that match.
Light Function
Xenon flash
Coil / Supply Voltage
12–24 V DC
Illumination
Illuminated
Product Series
Pfannenberg PYRA
Voltage
10–57 V DC
Product Type
Xenon Flashing Light
Series
PYRA PY X-M-05
Part Number
21550814000
Rated Voltage
12V / 24V / 48V DC, 24V AC
Operating Voltage Range
10-57V DC / 18-30V AC
Lens Colour
Yellow
Housing Colour
Red RAL 3000
Light Source
Xenon Flash Tube
Flash Energy
5 Joules
Flash Frequency
0.1 / 0.5 / 0.75 / 1 Hz Adjustable
Maximum Visibility
Up to 173 m
Protection Rating
IP66
Impact Protection
IK08
Housing Material
PC/ABS Blend
Operating Temperature
-40°C to +55°C
Dimensions
166 x 124 x 114 mm
Service Life
Approx. 8 million flashes with 70% light output remaining
HS Code
85318070
IP Rating
IP66
Colour
Yellow
Frequently Asked Questions
What is the Pfannenberg 21550814000?
The Pfannenberg 21550814000 is a PYRA PY X-M-05 xenon flashing light with a
yellow lens, red housing, and wide-range DC/AC voltage capability.
What voltage does the 21550814000 operate on?
This model operates from 10-57V DC and 18-30V AC, supporting multiple
industrial power configurations.
What is the flash energy of this beacon?
The PY X-M-05 provides a 5 Joule xenon flash output for high-visibility
industrial signaling.
Is the Pfannenberg 21550814000 suitable for outdoor use?
Yes. The IP66 enclosure, IK08 impact protection, and wide operating
temperature range make it suitable for demanding industrial environments.
Light Function
Xenon flash
Coil / Supply Voltage
12–24 V DC
Illumination
Illuminated
Product Series
Pfannenberg PYRA
Voltage
10–57 V DC
Product Type
Xenon Flashing Light
Series
PYRA PY X-M-05
Part Number
21550814000
Rated Voltage
12V / 24V / 48V DC, 24V AC
Operating Voltage Range
10-57V DC / 18-30V AC
Lens Colour
Yellow
Housing Colour
Red RAL 3000
Light Source
Xenon Flash Tube
Flash Energy
5 Joules
Flash Frequency
0.1 / 0.5 / 0.75 / 1 Hz Adjustable
Maximum Visibility
Up to 173 m
Protection Rating
IP66
Impact Protection
IK08
Housing Material
PC/ABS Blend
Operating Temperature
-40°C to +55°C
Dimensions
166 x 124 x 114 mm
Service Life
Approx. 8 million flashes with 70% light output remaining
HS Code
85318070
IP Rating
IP66
Colour
Yellow
No documents available for this product.
