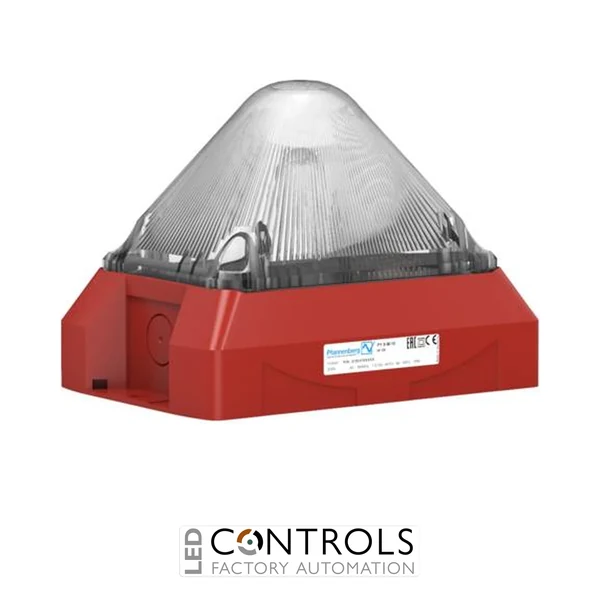

Pfannenberg PYRA series PY X-M-05 10-57V DC CL RAL3000PY X-M-05 10-57V DC CL RAL3000
Pfannenberg PY X-M-05 10-57V DC CL RAL3000 PYRA xenon flashing signal light designed for reliable visual warning and industrial signalling applications.
SKU:21550811000MPN:21550811000
Price on applicationContact us for pricing and availability.
The Pfannenberg 21550811000 PY X-M-05 is a powerful PYRA®
series xenon flashing light designed for industrial visual signaling,
machinery safety, and warning applications. Featuring a clear lens, red
housing, and 24V AC/DC operation, this high-performance beacon delivers a
5 Joule xenon flash output with excellent visibility and reliable operation
in demanding environments.
Designed for simple installation and long-term reliability, the PY X-M-05
includes adjustable flash rates via DIP switch, synchronization capability
for multiple connected units, rugged polycarbonate/ABS construction, and
IP66 protection. Its pyramid-style housing allows surface or panel mounting
for flexible industrial installation.
Product Features
Manufacturer: Pfannenberg
Part Number: 21550811000
Series: PYRA PY X-M-05
High-intensity xenon flashing technology
5 Joule flash energy output
Clear lens with red RAL 3000 housing
24V AC/DC power supply
Adjustable flash rate via DIP switch
Automatic synchronization of multiple flashing lights
Suitable for surface and panel mounting
IP66 / UL Type 4/4X protection
Polycarbonate/ABS impact-resistant housing
Long service life with consistent flash performance
Applications
The Pfannenberg 21550811000 PY X-M-05 is suitable for industrial automation,
machine safety systems, production lines, process equipment, control panels,
warehouses, and general warning applications requiring a highly visible
optical signal.
Benefits
Excellent visibility using proven xenon flash technology
Reliable operation in harsh industrial environments
Flexible mounting options for different installations
Synchronization capability for multi-device warning systems
IP66 protection against dust and water ingress
Long operating life with stable light output
Technical Specifications
Tick the specs you need, then view products that match.
Light Function
Xenon flash
Coil / Supply Voltage
24 V AC/DC
Illumination
Illuminated
Product Series
Pfannenberg PYRA
Voltage
10–57 V DC
Product Type
Xenon Flashing Light
Series
PYRA PY X-M-05
Part Number
21550811000
Rated Voltage
24V AC/DC
Operating Voltage Range
24V AC: 18-30V DC: 10-57V
Lens Colour
Clear
Housing Colour
Red RAL 3000
Light Source
Xenon Flash Tube
Flash Energy
5 Joules
Flash Frequency
0.1 / 0.5 / 0.75 / 1 Hz Adjustable
Maximum Visibility
Up to 173 m
Protection Rating
IP66 / UL Type 4/4X
Housing Material
Polycarbonate / ABS Blend
Operating Temperature
-40°C to +55°C
Dimensions
Approx. 114 x 154 x 124 mm
Service Life
Approx. 8 million flashes with 70% light output remaining
HS Code
85318070
IP Rating
IP66
Colour
Clear
Frequently Asked Questions
What is the Pfannenberg 21550811000?
The Pfannenberg 21550811000 is a PYRA PY X-M-05 xenon flashing light with a
clear lens, red housing, and 24V AC/DC operation.
What voltage does the 21550811000 operate on?
The device operates on 24V AC/DC and supports a wide industrial operating
voltage range.
What is the flash energy of this beacon?
The PY X-M-05 provides a 5 Joule xenon flash output for high-visibility
industrial signaling.
Can multiple Pfannenberg PY X-M-05 units be synchronized?
Yes. The PY X-M-05 supports synchronization of multiple connected flashing
lights for coordinated warning signals.
Light Function
Xenon flash
Coil / Supply Voltage
24 V AC/DC
Illumination
Illuminated
Product Series
Pfannenberg PYRA
Voltage
10–57 V DC
Product Type
Xenon Flashing Light
Series
PYRA PY X-M-05
Part Number
21550811000
Rated Voltage
24V AC/DC
Operating Voltage Range
24V AC: 18-30V DC: 10-57V
Lens Colour
Clear
Housing Colour
Red RAL 3000
Light Source
Xenon Flash Tube
Flash Energy
5 Joules
Flash Frequency
0.1 / 0.5 / 0.75 / 1 Hz Adjustable
Maximum Visibility
Up to 173 m
Protection Rating
IP66 / UL Type 4/4X
Housing Material
Polycarbonate / ABS Blend
Operating Temperature
-40°C to +55°C
Dimensions
Approx. 114 x 154 x 124 mm
Service Life
Approx. 8 million flashes with 70% light output remaining
HS Code
85318070
IP Rating
IP66
Colour
Clear
