Why Choose the Pizzato VF L35-R5 Adjustable Lever?

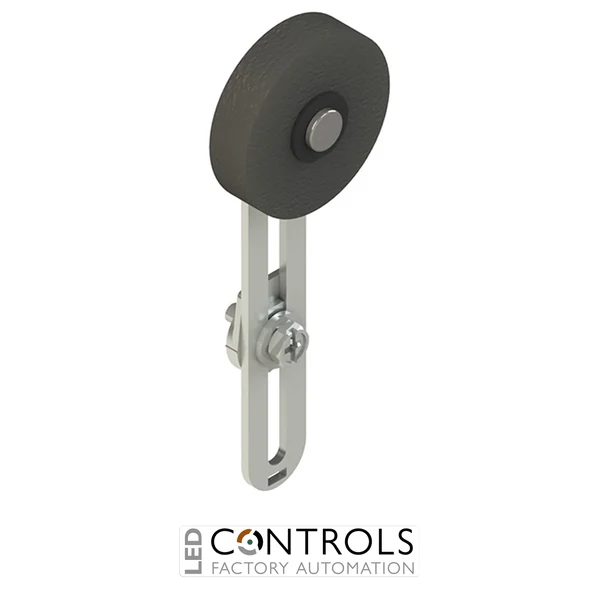

The VF L35-R5 is an adjustable lever actuator with a 40 mm diameter rubber roller designed for use with compatible Pizzato position switches in industrial automation and machine control applications. As part of the Pizzato VF actuator series, it provides a flexible mechanical actuation solution for compatible FD, FP, FL and FC series position switches.
The adjustable lever allows the roller position to be set to suit the machine installation and operating geometry. The rubber roller provides smooth contact with moving machine components, making the actuator suitable for detecting mechanical movement, position changes and end-of-travel conditions.
The 40 mm rubber roller and adjustable lever arrangement provide a practical solution where the actuator position needs to be adapted to the machinery. The VF L35-R5 is supplied as a separate actuator and is intended for assembly with compatible Pizzato position switches.
Key Advantages
- Adjustable lever actuator for Pizzato position switches.
- 40 mm diameter rubber roller for smooth mechanical actuation.
- Adjustable lever allows the actuator geometry to be adapted to the installation.
- Suitable for compatible FD, FP, FL and FC series position switches.
- Compact mechanical design for industrial machine applications.
- Available as a separate actuator for flexible switch configuration.
Key Features
- Pizzato VF actuator series.
- VF L35-R5 adjustable lever.
- 40 mm diameter rubber roller.
- Adjustable lever mechanism.
- Separate actuator design for compatible position switches.
- M5 fixing arrangement.
- Designed for industrial position and limit switching applications.
- Suitable for compatible Pizzato FD, FP, FL and FC series switches.
Reliable Mechanical Position Detection
The Pizzato VF L35-R5 provides a dependable mechanical actuation method for position switches used in industrial machinery. When a moving machine component contacts the rubber roller, the lever transfers the movement to the connected position switch, allowing the switching device to detect the required mechanical position.
The adjustable lever design makes it possible to configure the roller position according to the application. This can be particularly useful on machinery where the operating point, approach direction or available mounting space requires the actuator geometry to be adjusted.
Typical Applications
- Industrial position and limit switches.
- Machine position monitoring systems.
- Mechanical end-of-travel detection.
- Industrial automation machinery.
- Machine guarding and safety-related position detection.
- OEM machinery and machine-building applications.
