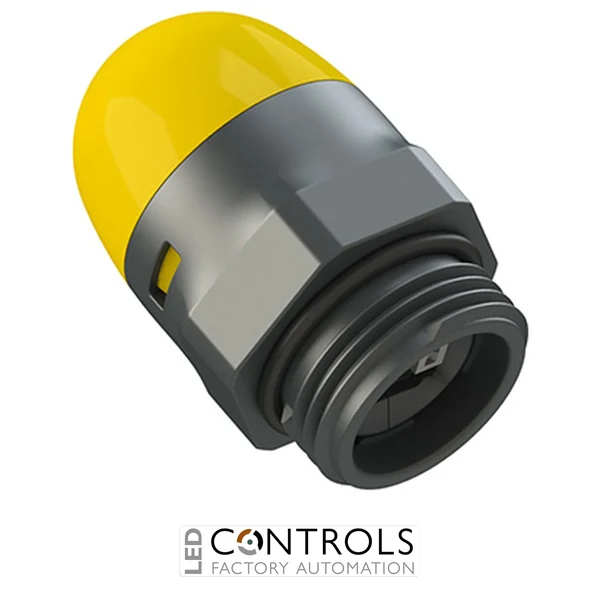

Why Choose the Pizzato VFSL3A5PA1 LED Signalling Light?
The Pizzato VFSL3A5PA1 is a compact and reliable yellow LED signalling light designed to provide clear visual indication in industrial machinery, safety equipment and automation systems. As part of the Pizzato VF LED signalling light range, it is designed to indicate changes in the state of electrical contacts within compatible switches and safety devices.
The VFSL3A5PA1 uses a standard LED with continuous light and operates from a 120 V AC supply. Its yellow lens provides a clear visual indication, while the integrated PUSH-IN spring terminal strip provides a practical and secure method of electrical connection.
With an overall height of approximately 40.1 mm, a spherical lens and M20 × 1.5 mm threading, the VFSL3A5PA1 can be installed in a compatible unused cable-entry position on Pizzato switches. Its IP67 and IP69K protection ratings make it suitable for demanding industrial environments where resistance to dust, water and high-pressure cleaning is required.
Key Advantages
- Compact yellow LED signalling light for industrial safety and automation equipment.
- 120 V AC operating voltage suitable for compatible industrial control circuits.
- Standard LED with continuous light for clear visual status indication.
- IP67 and IP69K protection for demanding industrial environments.
- PUSH-IN spring terminal strip simplifies electrical connection.
- M20 × 1.5 mm threading for straightforward installation in compatible switch housings.
Key Features
- Pizzato VF LED signalling light range.
- Yellow standard LED with continuous illumination.
- 120 V AC operating voltage.
- 20 mA operating current.
- PUSH-IN spring terminal strip connection system.
- 40.1 mm overall height.
- Spherical lens design.
- M20 × 1.5 mm threading.
- IP67 and IP69K protection ratings.
- Operating temperature range of −25 to +70 °C.
Clear Visual Signalling for Industrial Safety Equipment
LED signalling lights such as the Pizzato VFSL3A5PA1 provide operators and maintenance personnel with a clear visual indication of changes in the state of an electrical contact. The continuous yellow LED illumination can be used to provide an easily recognisable machine or safety-system status signal.
The VFSL3A5PA1 is designed to be installed by screwing it into an unused cable-entry position on compatible Pizzato switches. Its 120 V AC supply, low 20 mA operating current and PUSH-IN connection system make it well suited to industrial control applications, while its IP67 and IP69K protection ratings support use in environments exposed to dust, water and high-pressure cleaning.
Typical Applications
- Safety switch status indication.
- Industrial safety equipment indication.
- Machine status and operating-condition indication.
- Control panels and industrial automation equipment.
- Production and processing machinery.
- OEM machine-building and safety applications.
