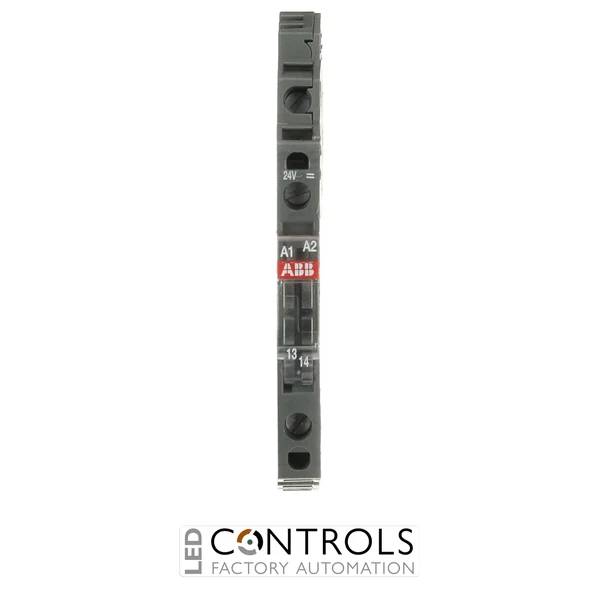

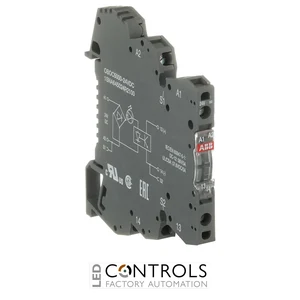

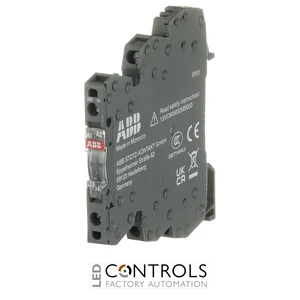

Why Choose the ABB OBOC5000-24VDC Optocoupler?
The ABB OBOC5000-24VDC is a compact and reliable solid-state optocoupler designed to provide electrical isolation and dependable signal switching between control and load circuits in industrial automation and electrical control systems. As part of the ABB R600 boxed optocoupler series, it provides a slim 6 mm design with MOS-FET output technology and screw terminal connections.
This optocoupler provides a 24 V DC control supply and a solid-state output suitable for switching DC loads from 4.5 to 58 V DC at currents from 1 mA up to 5 A. The compact R600 construction helps save space in control panels while providing reliable electrical interfacing between control electronics and field devices.
With a 24 V DC control supply, 5 A maximum output current and 4.5–58 V DC output range, the OBOC5000-24VDC is suitable for industrial interface applications where reliable DC signal isolation and switching are required. Its screw terminal connection provides straightforward wiring for control panel and automation installations.
Key Advantages
- Compact R600 solid-state optocoupler for industrial interface applications.
- 24 V DC control supply for common industrial control systems.
- 4.5–58 V DC output range for flexible DC load switching.
- Up to 5 A output current for switching suitable industrial loads.
- Solid-state MOS-FET output provides reliable electronic switching.
- Ultra-slim 6 mm wide design helps maximise control panel space.
Key Features
- ABB R600 boxed optocoupler series.
- 24 V DC rated control supply voltage.
- 4.5–58 V DC output signal range.
- 1 mA to 5 A output current range.
- MOS-FET solid-state output.
- Screw terminal connections for straightforward wiring.
- One integrated LED for status indication.
- Compact 6 mm wide interface module.
Reliable Signal Isolation for Industrial Automation
Optocouplers provide electrical isolation between control circuits and output circuits, allowing electronic control signals to operate field devices while helping protect sensitive control equipment from electrical interference and differences between circuits. Solid-state designs such as the ABB OBOC5000-24VDC provide electronic switching without mechanical relay contacts.
The ABB R600 series is designed for industrial interface applications where compact dimensions, dependable signal switching and straightforward control panel installation are important. The OBOC5000-24VDC combines a 24 V DC control input with MOS-FET output technology for switching suitable DC loads up to 5 A.
Typical Applications
- Industrial automation and control panels.
- PLC and controller output interfacing.
- DC signal isolation and switching.
- Machine control and industrial equipment.
- Interface circuits for field devices and actuators.
- Electrical control and instrumentation systems.
