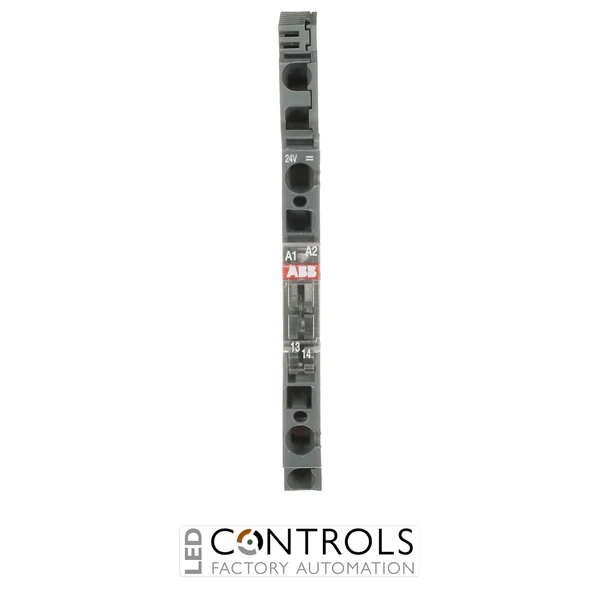

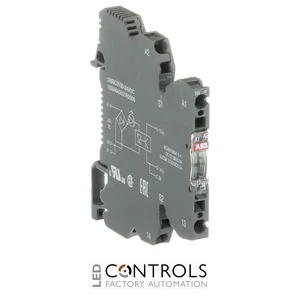

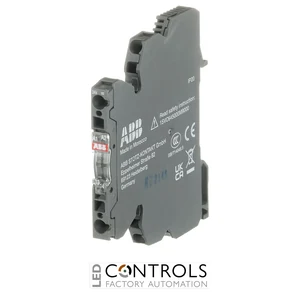

Why Choose the ABB OBRIC0100-24VDC Optocoupler?
The ABB OBRIC0100-24VDC is a compact and reliable solid-state optocoupler designed for signal switching and electrical interfacing in industrial automation and control systems. As part of the ABB R600 optocoupler series, it provides dependable optically isolated switching between control and field circuits.
This optocoupler provides solid-state electronic switching for industrial control applications, helping interface control equipment with low-current DC circuits. Its optically isolated design separates the control signal from the switched output, making it suitable for PLC interfaces, machine automation and electrical control systems.
With a 24 V DC control supply, a 58 V DC output and an output current of 100 mA, the OBRIC0100-24VDC is suitable for low-current DC signal switching applications. Its solid-state construction provides an alternative to conventional mechanical relay contacts where reliable electronic switching is required.
Key Advantages
- Compact solid-state optocoupler designed for industrial automation.
- 24 V DC control supply suitable for industrial control circuits.
- 58 V DC output for low-voltage DC switching applications.
- 100 mA output current suitable for signal and interface circuits.
- Optical isolation between control and switched circuits.
- Reliable solid-state switching for automation and control applications.
Key Features
- ABB R600 optocoupler series.
- 100 mA output current.
- 24 V DC control supply.
- 58 V DC output.
- Solid-state electronic switching.
- Optically isolated interface between control and field circuits.
- Designed for industrial automation and electrical control systems.
- Suitable for low-current DC signal switching applications.
Reliable Interface Switching for Industrial Automation
Optocouplers provide electrical isolation between control signals and switched circuits while using solid-state electronic switching. This makes them useful for interfacing PLCs, controllers and automation equipment with field-level DC circuits.
The ABB OBRIC0100-24VDC is designed for industrial applications where dependable low-current DC signal switching and optical isolation are required. Its 24 V DC control supply, 58 V DC output and 100 mA output current make it suitable for a range of automation and electrical interface applications.
Typical Applications
- PLC signal interfaces.
- Industrial control panels.
- Machine automation systems.
- Low-current DC switching circuits.
- Control and signalling systems.
- Process automation equipment.
