Why Choose the ABB CR-M048DC2 Pluggable Relay?

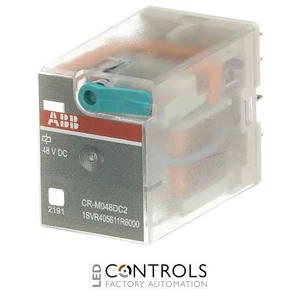

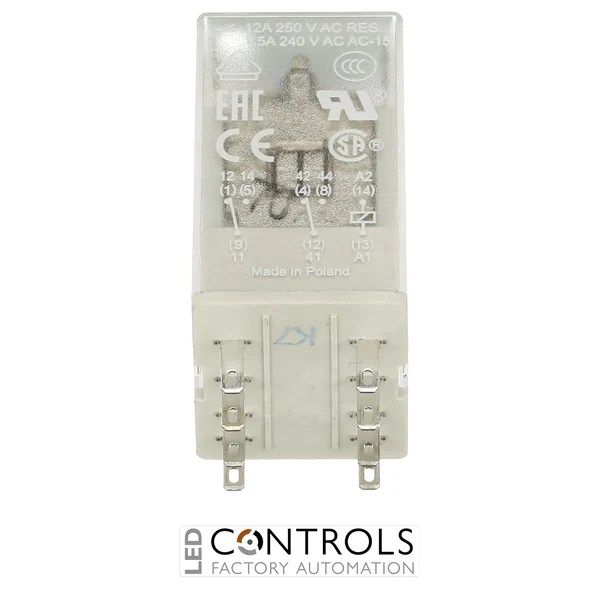

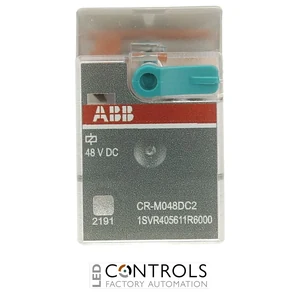

The ABB CR-M048DC2 is a compact pluggable miniature interface relay with 2 changeover contacts, designed for dependable switching and signal interfacing in industrial automation and control systems. Part of the ABB CR-M range, it combines a 48 V DC control supply with two changeover outputs in a practical plug-in format.
The CR-M048DC2 operates from a 48 V DC control supply and provides 2 c/o (SPDT) contacts with an output rating of 250 V and 12 A. The relay uses silver-nickel alloy contacts and does not have a built-in LED, making it suitable for straightforward relay interface applications where visual indication is not required. :chatgpt-content-reference{index="0"}
The pluggable construction allows the CR-M048DC2 to be installed in a compatible ABB CR-M socket, while its compact housing measures approximately 21.2 mm wide, 35.6 mm high and 27.5 mm deep. This provides a space-efficient interface solution for industrial control panels, PLC systems and automation assemblies. :chatgpt-content-reference{index="1"}
Key Advantages
- Reliable ABB CR-M pluggable miniature interface relay.
- 48 V DC control supply for compatible control circuits.
- 2 c/o (SPDT) contacts provide flexible switching functionality.
- Output rating of 250 V and 12 A.
- Silver-nickel alloy (AgNi) contacts for reliable electrical switching.
- Pluggable construction simplifies relay replacement and maintenance.
- Compact housing helps make efficient use of control cabinet space.
- No built-in LED, providing a straightforward relay interface configuration.
Key Features
- ABB CR-M048DC2 pluggable interface relay.
- 48 V DC rated control supply voltage.
- 2 c/o (SPDT) output contacts.
- Electromagnetic relay technology.
- 12 A contact rating.
- 250 V output voltage rating.
- Silver-nickel alloy (AgNi) contact material.
- No built-in LED.
- Socket-mounted pluggable construction.
- Compact 21.2 mm wide housing.
- Approximate dimensions of 21.2 × 35.6 × 27.5 mm.
- Product net weight approximately 0.033 kg.
Reliable Interface Switching for Industrial Automation
The ABB CR-M048DC2 provides a dependable electromechanical interface between control equipment and external circuits. Its two changeover contacts provide flexible switching functionality, while the 48 V DC coil makes it suitable for compatible industrial automation and control systems.
The pluggable construction allows the relay to be installed into a compatible CR-M socket, providing a practical solution for control cabinets and interface assemblies. Its compact housing, 12 A contact rating and AgNi contact material make the CR-M048DC2 suitable for a wide range of industrial switching and control applications.
Typical Applications
- PLC and controller interfaces.
- Industrial automation control panels.
- Machine control systems.
- Relay-based switching and interlocking circuits.
- Control circuit signal switching.
- Industrial interface applications.
- OEM machinery and equipment.
- Building and process automation systems.
- Control cabinet interface assemblies.
