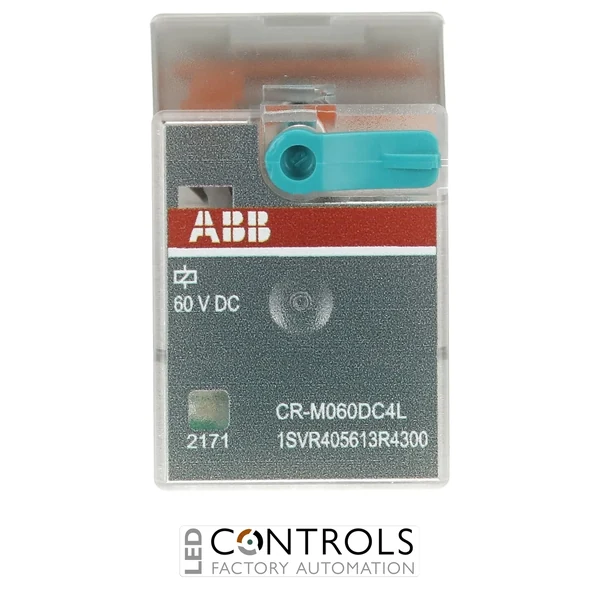

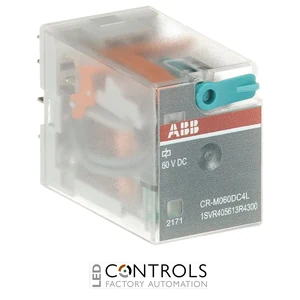

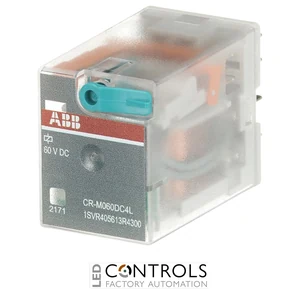

Why Choose the ABB CR-M060DC4L Pluggable Relay?
The ABB CR-M060DC4L is a compact and reliable pluggable miniature interface relay designed for electrical control, industrial automation and interface applications. As part of the ABB CR-M pluggable relay series, it provides four changeover contacts and a 60 V DC control coil for dependable switching between control circuits and connected loads.
This relay features 4 C/O (4PDT) contacts with a contact rating of up to 250 V / 6 A. Its plug-in construction allows the relay to be installed in a compatible CR-M socket, simplifying panel assembly, servicing and relay replacement without rewiring the control circuit.
The CR-M060DC4L incorporates a built-in LED status indicator, providing convenient visual indication of relay energisation. With flat-pin connections, compact dimensions and an IP40 enclosure, it is well suited to control cabinets, machinery, PLC interfacing and general-purpose industrial switching applications.
Key Advantages
- Compact pluggable miniature interface relay for industrial control applications.
- 60 V DC rated control supply voltage.
- Four changeover (4 C/O / 4PDT) contacts provide flexible switching.
- Contact output rated up to 250 V / 6 A.
- Integrated LED status indication for easy operational monitoring.
- Plug-in construction simplifies installation, maintenance and replacement.
- Compact format is suitable for space-conscious electrical control panels.
Key Features
- ABB CR-M pluggable relay series.
- 60 V DC coil voltage.
- 4 C/O (SPDT) contacts.
- 6 A contact rating.
- 250 V AC rated operational voltage.
- Built-in LED indicator.
- Flat-pin connections for compatible relay sockets.
- IP40 protection rating.
- Compact relay body for control cabinet and machine applications.
Reliable Switching for Industrial Control Systems
Pluggable interface relays such as the ABB CR-M060DC4L provide electrical switching between control equipment and field loads. The relay's four changeover contacts allow multiple circuits or signals to be switched simultaneously from a single 60 V DC control input.
The CR-M range is designed for convenient integration into industrial control systems using compatible relay sockets and accessories. Its plug-in format supports efficient installation and maintenance, while the integrated LED enables operators and maintenance engineers to identify the relay's energised state quickly during commissioning and troubleshooting.
Typical Applications
- Industrial control cabinets and switchboards.
- PLC output and interface circuits.
- Machine control and automation systems.
- Signal isolation and switching circuits.
- Motor control and auxiliary circuits.
- Process control equipment.
- Building and infrastructure control systems.
