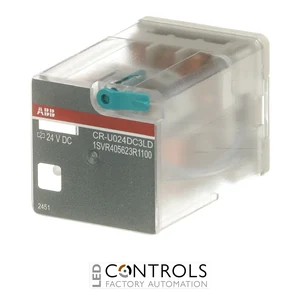

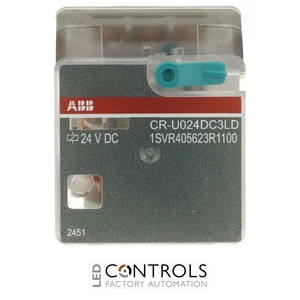

Why Choose the ABB CR-U024DC3LD Pluggable Relay?
The ABB CR-U024DC3LD is a compact and reliable pluggable universal interface relay designed for electrical isolation, signal amplification and signal matching between electronic control systems, PLCs, fieldbus systems and actuator or sensor levels. As part of the ABB CR-U universal relay series, it provides three changeover contacts and operates from a 24 V DC control supply. :chatgpt-content-reference{index="0"}
This relay is designed for industrial control applications where dependable switching, easy maintenance and flexible integration are required. The CR-U series relays plug into compatible CR-U sockets, allowing the relay and socket combination to be snap-mounted onto DIN rails, while robust circular pin terminals support demanding repetitive-use applications. :chatgpt-content-reference{index="1"}
The CR-U024DC3LD provides 3 changeover (3 C/O) contacts with contacts rated at 250 V / 10 A. The LD version includes an integrated LED status indicator and diode suppression, together with a test button for manual actuation and locking of the output contacts, simplifying commissioning, testing and maintenance operations. :chatgpt-content-reference{index="2"}
Key Advantages
- Compact pluggable universal interface relay for industrial control applications.
- 24 V DC rated control supply voltage.
- 3 changeover contacts for flexible multi-circuit switching.
- 250 V / 10 A contact rating for reliable switching performance.
- Integrated LED indication for clear relay energisation status.
- Integrated diode suppression for DC coil protection.
- Integrated test button supports manual operation and commissioning.
- Compatible with ABB CR-U sockets, logic sockets and accessories.
Key Features
- ABB CR-U universal pluggable relay series.
- 24 V DC coil/control voltage.
- 3 C/O (SPDT) contacts.
- 10 A contact rating.
- 250 V AC rated operational voltage.
- Integrated LED coil energisation indication.
- Integrated diode for surge suppression.
- Integrated manual test button with locking function.
- Universal relay design for electrical isolation, amplification and signal matching.
- Robust circular pin terminal construction.
Reliable Interface Switching for Industrial Control Systems
Interface relays provide electrical separation and signal adaptation between electronic controllers and field-level equipment. The ABB CR-U range is designed for applications where PLCs, controllers and automation systems require dependable switching interfaces for sensors, actuators and electrical loads. :chatgpt-content-reference{index="3"}
With its three changeover contacts, 24 V DC coil, integrated LED indication, diode suppression and pluggable construction, the CR-U024DC3LD provides a versatile solution for industrial control panels, machine automation and process-control systems. :chatgpt-content-reference{index="4"}
Typical Applications
- Industrial control panels and switchboards.
- PLC and automation system interfacing.
- Electrical isolation between control and field circuits.
- Signal amplification and signal matching.
- Machine control and industrial automation systems.
- Sensor and actuator interface applications.
- Process control and manufacturing equipment.
