Why Choose the ABB CR-PLP Push-In Logical Socket?

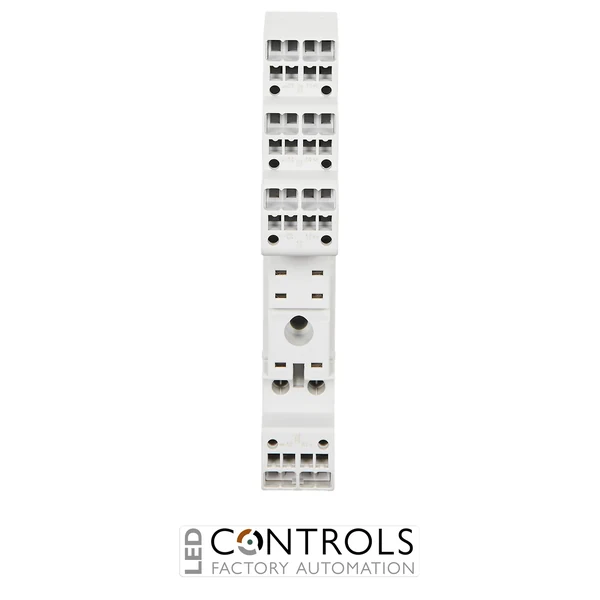

The ABB CR-PLP is a compact push-in logical relay socket designed for use with ABB CR-P pluggable interface relays featuring one or two changeover contacts. As part of the ABB CR-P interface relay range, it provides a secure and convenient connection platform for relay installations in industrial automation, machinery and electrical control panels.
The CR-PLP uses push-in spring connection terminals, allowing conductors to be connected quickly and securely while reducing wiring time compared with conventional screw-terminal connections. Its logical terminal arrangement places the coil connections on the lower side and the common, normally open and normally closed contact connections on the upper side for organised control-panel wiring.
Designed for 1 C/O or 2 C/O CR-P relays, the CR-PLP is suitable for snap-on mounting onto a 35 mm DIN rail. The socket also supports ABB CR-P pluggable function modules and associated accessories, providing a flexible interface relay solution for control cabinets and automation systems.
Key Advantages
- Purpose-designed logical socket for ABB CR-P relays.
- Compatible with 1 C/O and 2 C/O CR-P relay configurations.
- Push-in spring terminals enable fast and intuitive wiring.
- Self-tightening connection technology provides secure conductor retention.
- Designed for applications where resistance to vibration and shock is beneficial.
- Logical terminal arrangement supports organised control-panel wiring.
- Suitable for 35 mm DIN rail mounting.
- Compatible with pluggable CR-P function modules and accessories.
Key Features
- ABB CR-P relay socket range.
- Logical socket configuration.
- Suitable for 1 C/O or 2 C/O CR-P relays.
- Push-in spring connection terminals.
- 250 V rated operational voltage.
- 250 V / 10 A output rating.
- Coil connections positioned on the lower side of the socket.
- Common, normally open and normally closed contact connections positioned on the upper side.
- Snap-on installation onto standard DIN rail.
- Supports ABB CR-P pluggable function modules.
Fast and Reliable Relay Wiring
The ABB CR-PLP provides the electrical and mechanical interface required to integrate compatible CR-P relays into industrial control systems. Push-in connection technology allows suitable conductors to be inserted directly into the terminal, providing a secure connection while helping reduce assembly time during control-panel production.
Its logical terminal layout separates the coil connections from the relay contact wiring, supporting clear and structured panel design. Compatible pluggable function modules can also be fitted to expand the relay interface configuration, while the socket's DIN rail mounting makes it straightforward to incorporate into modular control assemblies.
Typical Applications
- Industrial electrical control panels.
- PLC and controller interface circuits.
- Machine building and factory automation.
- Relay interface assemblies.
- Process control systems.
- Rail and transportation control equipment.
- Industrial systems exposed to vibration and shock.
