Why Choose the ABB CR-M2LS Logical Relay Socket?

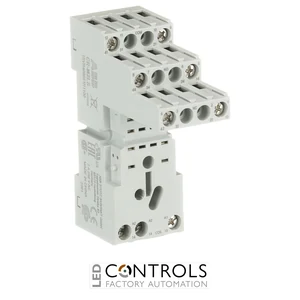

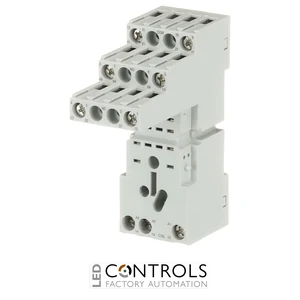

The ABB CR-M2LS is a compact and reliable logical relay socket designed for ABB CR-M pluggable miniature relays with two changeover contacts. As part of the ABB CR-M pluggable relay range, it provides a secure mounting and electrical connection interface for relay installations in industrial automation, machinery and electrical control panels.

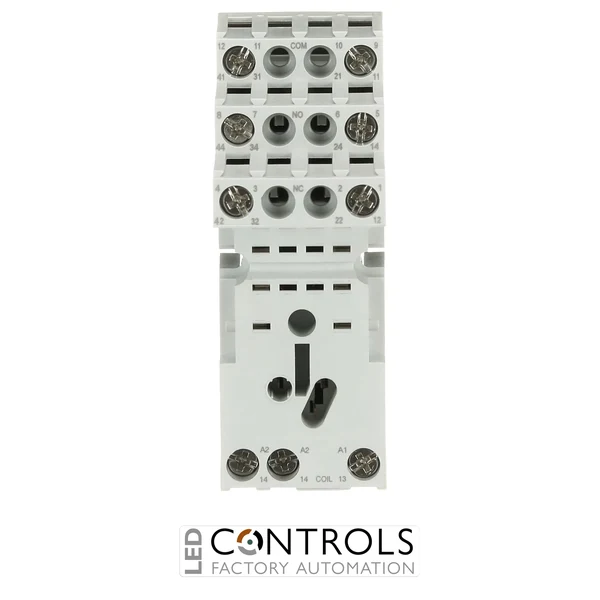

The CR-M2LS features screw connection terminals for secure and familiar conductor termination. Its logical terminal arrangement separates the coil and contact connections to support clear, structured control-panel wiring and simplify installation, testing and maintenance.
Designed specifically for 2 C/O CR-M relays, the CR-M2LS can be mounted onto a standard 35 mm DIN rail. The socket provides a practical modular platform for incorporating compatible CR-M relays into PLC interfaces, machine controls and other industrial switching circuits.
Key Advantages
- Purpose-designed logical socket for ABB CR-M relays.
- Suitable for 2 C/O relay configurations.
- Screw terminals provide secure conductor connections.
- Logical terminal arrangement supports clear and organised panel wiring.
- Plug-in relay design simplifies installation, maintenance and replacement.
- Suitable for 35 mm DIN rail mounting.
- Compact construction helps optimise space inside control cabinets.
- Ideal for industrial automation and relay interface assemblies.
Key Features
- ABB CR-M relay socket range.
- Logical socket configuration.
- Designed for 2 C/O CR-M pluggable relays.
- Screw connection terminals.
- Socket-mounted relay arrangement for straightforward replacement.
- DIN rail installation for modular control-panel construction.
- Suitable for industrial control and interface applications.
- Compatible with associated ABB CR-M relay system accessories.
Reliable Relay Connections for Industrial Control Panels
The ABB CR-M2LS provides the electrical and mechanical interface required to integrate compatible two-changeover CR-M relays into industrial control systems. Screw terminals provide secure conductor termination, while the plug-in relay arrangement enables relays to be removed and replaced without rewiring the permanent socket connections.
The logical terminal arrangement supports organised wiring within control cabinets and makes circuit identification easier during assembly and maintenance. Combined with DIN rail mounting, the CR-M2LS provides a practical solution for building modular relay interfaces in modern industrial automation systems.
Typical Applications
- Industrial electrical control panels.
- PLC and controller interface circuits.
- Machine building and factory automation.
- Relay interface assemblies.
- Process control systems.
- Motor control and auxiliary circuits.
- Industrial signal switching applications.
