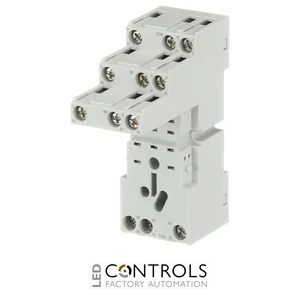

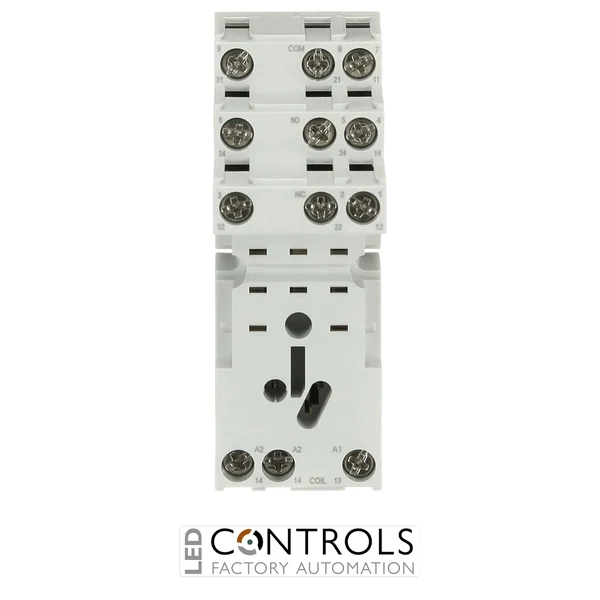

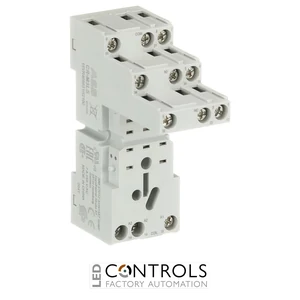

Why Choose the ABB CR-M3LS Logical Socket?
The ABB CR-M3LS is a reliable logical socket for miniature pluggable interface relays designed for use with ABB CR-M relays featuring three changeover contacts. As part of the ABB CR-M relay accessory range, it provides a secure relay interface with screw connection terminals for industrial automation, control panels and electrical switching applications. :chatgpt-content-reference{index="0"}
This socket is designed specifically for CR-M relays with 3 C/O (SPDT) output contacts, providing a practical connection interface between the relay and external control wiring. The pluggable design allows fast relay installation and replacement, while compatible ABB function modules, holders and markers provide additional configuration flexibility. :chatgpt-content-reference{index="1"}
The CR-M3LS features screw connection terminals, a compact construction and reliable electrical performance for industrial environments. It supports a rated operational voltage of 250 V and a rated AC-12 operational current of 7 A at 230 V, making it suitable for a wide range of relay interface applications. :chatgpt-content-reference{index="2"}
Key Advantages
- Dedicated logical socket for ABB CR-M miniature relays.
- Suitable for 3 C/O (SPDT) CR-M relay configurations.
- Screw terminal connections simplify industrial wiring.
- Enables fast relay replacement without rewiring the complete circuit.
- Compatible with ABB pluggable function modules, holders and markers.
- Compact design for efficient control-panel installation.
- DIN rail mounting capability when installed with suitable mounting arrangements.
Key Features
- ABB CR-M miniature relay accessory series.
- Logical socket for 3 C/O miniature relays.
- Screw connection terminals.
- Rated operational voltage of 250 V.
- Rated operational current AC-12: 7 A at 230 V.
- Compatible with CR-M pluggable interface relays.
- Supports optional pluggable function modules.
- Supports ABB holders and markers for panel organisation.
- Designed for industrial automation and control applications.
Reliable Relay Mounting for Industrial Automation Systems
Relay sockets provide the mechanical and electrical interface required to install pluggable relays securely within industrial control systems. The ABB CR-M3LS logical socket simplifies relay integration by providing organised screw wiring, reliable connections and convenient replacement of compatible CR-M relay modules.
Designed for automation engineers, panel builders and maintenance teams, the CR-M3LS supports efficient control-panel layouts while maintaining the flexibility of ABB's CR-M pluggable relay ecosystem. :chatgpt-content-reference{index="3"}
Typical Applications
- Industrial control panels and switchboards.
- PLC interface relay installations.
- Machine automation systems.
- Electrical control cabinets.
- Signal isolation and interface circuits.
- Process automation equipment.
- Relay replacement and maintenance applications.
