Why Choose the ABB E260-16-20 Latching Relay?

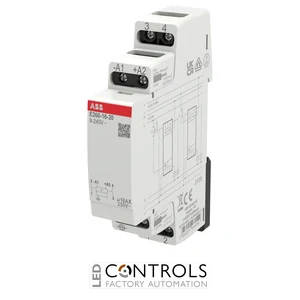

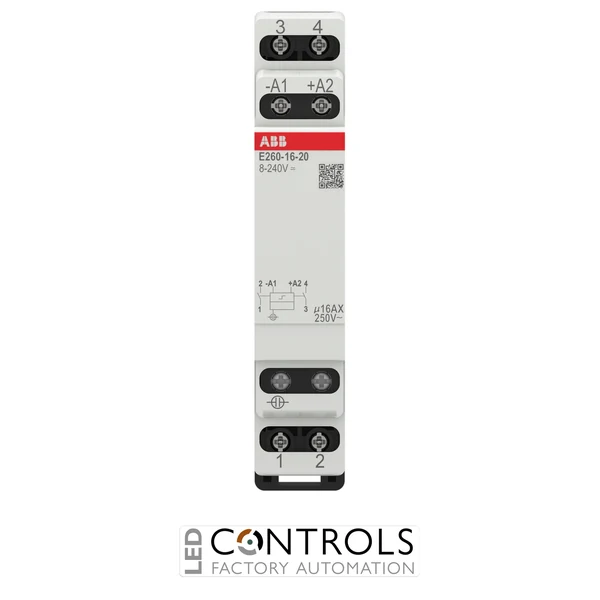

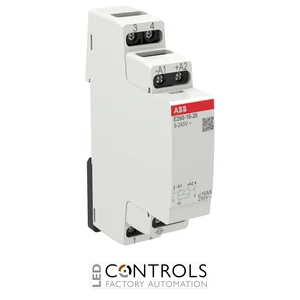

The ABB E260-16-20 is a compact electronic latching relay with two normally open (2NO) contacts designed for reliable and quiet switching in residential, commercial and building-control installations. As part of the ABB E260 electronic latching relay series, it combines silent electronic operation with a wide universal control-voltage range for flexible use in modern electrical systems.
The E260-16-20 allows connected loads to be switched using momentary control signals, making it particularly useful for lighting circuits controlled from multiple push-buttons. Its electronic design eliminates the disruptive switching noise associated with conventional electromechanical impulse relays, making the E260 series particularly suitable for homes, hotels, workplaces and other noise-sensitive environments.
With a 16 A rated current, 250 V AC rated voltage and universal 8–240 V AC/DC control voltage, the E260-16-20 provides considerable installation flexibility. Its two normally open contacts, 18 mm single-module width and DIN-rail mounting make it a practical solution for sub-distribution systems, while compatibility with LED loads up to 200 W supports modern energy-efficient lighting installations.
Key Advantages
- Electronic latching relay designed for quiet switching operation.
- Two normally open (2NO) contacts for switching multiple circuits.
- 16 A rated current suitable for lighting and building-control applications.
- Wide 8–240 V AC/DC universal control-voltage range provides installation flexibility.
- Suitable for switching LED loads up to 200 W.
- Compact 18 mm single-module design for DIN-rail distribution boards.
Key Features
- ABB E260 electronic latching relay series.
- 2NO contact configuration.
- 16 A rated current.
- 250 V AC rated voltage.
- 8–240 V AC/DC control voltage.
- 50/60 Hz rated supply frequency.
- Electronic design for quiet switching operation.
- Supports LED loads up to 200 W.
- IP20 degree of protection.
- 18 mm width for single-module DIN-rail installation.
Quiet and Flexible Latching Control
Electronic latching relays such as the ABB E260-16-20 change their switching state in response to control impulses, allowing a load to be operated conveniently from multiple push-buttons. This makes them especially useful for lighting and building-control circuits where conventional multi-way switching would be impractical or require more complex wiring.
The E260 series combines electronic switching with a universal 8–240 V AC/DC control input, allowing the same relay platform to be used across a broad range of control-voltage systems. Quiet operation and support for LED loads make the E260-16-20 particularly suitable for modern residential and commercial installations where both acoustic comfort and energy-efficient lighting are important.
Typical Applications
- Lighting circuits controlled from multiple push-buttons.
- Residential electrical distribution systems.
- Hotels and hospitality buildings.
- Offices and commercial premises.
- Building automation and control systems.
- Fan, lighting and air-conditioning control applications.
